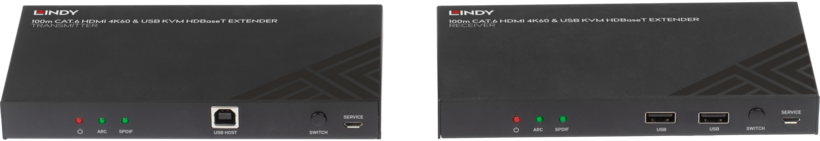

The HDMI extender consists of a transmitter and a receiver unit. It allows the distance to be extended up to 100 m for the HDMI signal. This is an optimal solution if a standard HDMI cable length is not sufficient.
Connects the transmitter and receiver over a distance of up to 100 m via an S/FTP Cat6 RJ45 cable or better
Supports resolutions up to 1920 x 1080 at 60 Hz over 100 m
Supports HDMI 2.0, USB 2.0, audio pass-through, Toslink or HDMI, RS232, HDMI CEC
With status LED
Metal casing
Connection: Transmitter: 1 x HDMI(A) female, 1 x DC power supply female. 2 x RJ45 female (1 x LAN, 1 x HDBaseT), 1 x USB-B female, 1 x 3.5 mm female (for audio), 2 x 3.5 mm female (for IR), 1 x Toslink female, 1 x 3-pin female (for RS232), Receiver; 1 x HDMI(A) female, 1 x DC power supply female. 2 x RJ45 female (1 x LAN, 1 x HDBaseT), 2 x USB-A female, 1 x 3.5 mm female (for audio), 2 x 3.5 mm female (for IR), 1 x Toslink female, 1 x 3-pin female (for RS232)
Includes: 1 x AC adapter (Euro, UK, US, AUS), 1 x IR transmitter cable 1.5 m, 1 x IR receiver cable 1.5 m, 2 x RS232 terminal block, 4 x mounting brackets with 8 x screws
