Shuttle Edge SPCEL12 Celeron Barebone PC

Chassis type: Midi housing - Processor model: Intel Celeron J6412, 2.0 GHz - Graphics: Intel UHD Graphics - Operating system: -... more

Kč 8,093.00

Gross price: Kč 9,792.53 incl. Kč 1,699.53 VAT excl.

Expected delivery on 26. March. Larger orders may incur extended delivery times.

Only a few items left in stock.

Robust Industry PC with 3 graphics ports and optional 4G The Shuttle Edge PC SPCEL02 is a fanless IPC barebone in a robust 0.5 l metal chassis Can be VESA mounted. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is space for an M.2 SSD card, a WLAN card or a 4G card. Please note: - Only supports SSD cards in M.2-2280 format (length: 80 mm) if no WLAN or 4G card are installed. - Either a WLAN or a 4G card can be installed. Please get in touch if you have any questions regarding configurations.

Shuttle Edge SPCEL12 Celeron Barebone PC

Product
Product typeBarebone PC
Manufacturer’s warranty3-year bring-in (see manufacturer's website for details)
Processor
Processor familyIntel Celeron
Processor modelIntel Celeron J6412, 2.0 GHz
Motherboard chipsetCPU-integrated
Memory
RAM typeDDR4
RAM modules (built in / max.)0 / 1
RAM (max.)32 GB
Graphics
Graphics typeOnboard / -
GraphicsIntel UHD Graphics
Storage
Memory card readermicroSD
Connectivity
Slots / bays (available)1 x M.2 2230 Wi-Fi, 1 x M.2 2242 SATA
Slots / bays (total)1 x M.2 2230 Wi-Fi, 1 x M.2 2242 SATA
Network card2.5 Gb Ethernet

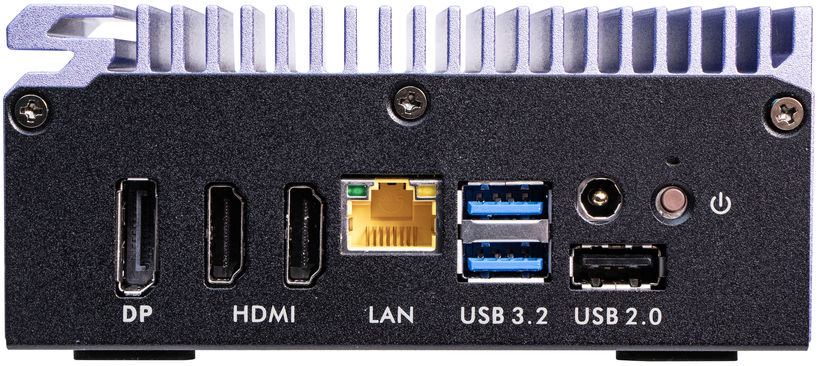

Connectors1 x USB 2.0 Type-A, 1 x serial, 1 x DisplayPort, 1 x headphones, 1 x Microphone, 2 x USB 3.1 Type-A, 2 x HDMI, 2 x RJ45
WirelessOptional WLAN, WWAN (internal upgrade option)
Operating system
Operating system-
Drives
Drives-
Security
SecurityTPM 2.0
Special features
Special features24 x 7 continuous operation, Aluminium casing, Fanless, Optional VESA mounting
Features
AC adapter65 W, External
Includes
IncludesPower supply (65 W)
Physical properties
Chassis typeMidi housing
Dimensions (W x H x D)120 x 51 x 75 mm
Country variant
Country variantEurope

Datasheets

Shuttle Edge SPCEL12 Celeron Barebone PC - Data sheet 1

File type: PDF

File size: 2.34 MB
