Shuttle DS50 series – Rugged fanless PCs with up to 96 GB RAM.



Four new mini PC solutions from Shuttle.

Shuttle has launched four thermally optimised mini barebone PCs running the latest Intel processors. These new-generation XPC slim series devices deliver considerably more computing power despite greater energy efficiency. Supporting DDR5 memory and 5G-ready, these new models are setting the bar in terms of performance and flexibility.

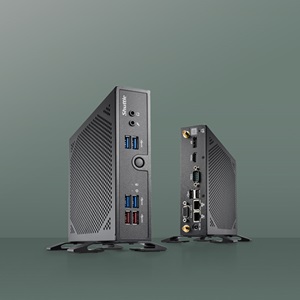

ds50



Powerful fanless mini PCs packed with the latest tech.

The DS50 series bundles modern CPU and storage technologies into a fanless chassis. Benefit from 20+ years’ experience in mini PC development and experience impressive computing power, reliability and workmanship in a compact design.

DS50 series features.

Times Circle Icon

Fanless design.

No fan means no moving parts, minimising maintenance and ensuring continuous operation.

Settings Icon

Intel ULV processors.

This series’ models have soldered Intel Gen12/13 ULV processors delivering enough power for demanding tasks such as 4K video playback.

Update software package Icon

Versatile connectivity options.

Two digital interfaces (HDMI and DisplayPort) and a VGA port allow up to three displays to be connected up for maximum technological flexibility.

Not yet dispatched Icon

Simple installation.

Two DDR5 memory modules, a 2.5" drive and two M.2 SSD cards can be easily installed in the practical housing.

Optimised expandability.

An additional M.2 slot allows a 4G/5G module to be integrated using the optional WWN04 adapter kit. The system is energy efficient and perfect for professional applications such as digital signage, PoS, kiosk, office PCs and servers.



Efficient performance in a portable format.

The DS50 series supports the latest 13th Gen. Intel Raptor Lake-U processors and offers dual-channel DDR5 memory with up to 96 GB. On board Iris Xe or UHD graphics (depending on the processor) ensure optimised multitasking performance that handles digital applications with ease.

Despite their compact 13-litre form factor, these devices come with a host of ports including eight USB, SATA 3.0 and three M.2 slots for additional expandability. With support for up to three displays, the DS50 series is perfect for IoT, digital signage, automation, edge computing and many more applications.

Models at a glance.

XPC slim DS50U – The entry-level model.

This low-maintenance and versatile fanless PC comes with an Intel Celeron 7305 processor (12th Gen.) and up to 64 GB DDR5 RAM. Ideal for simple applications such as Office and media playback.

Processor: Intel Celeron 7305 (12th Generation)

Memory: Up to 64 GB DDR5 RAM

Connections: HDMI 2.0b, DisplayPort 1.4, VGA

Storage options: 1 × 6.4 cm (2.5") HDD/SSD and 2 × M.2 SSD
Manufacturer no.:
Article no.:
    Product information sheet
    Manufacturer no.:
    Article no.:
      Product information sheet
      XPC slim DS50U – The entry-level model.

      This low-maintenance and versatile fanless PC comes with an Intel Celeron 7305 processor (12th Gen.) and up to 64 GB DDR5 RAM. Ideal for simple applications such as Office and media playback.

      Processor: Intel Celeron 7305 (12th Generation)

      Memory: Up to 64 GB DDR5 RAM

      Connections: HDMI 2.0b, DisplayPort 1.4, VGA

      Storage options: 1 × 6.4 cm (2.5") HDD/SSD and 2 × M.2 SSD
      Manufacturer no.:
      Article no.:
        Product information sheet
        XPC slim DS50U3 – The work horse.

        With an Intel Core i3-1315U (13th Gen.), this model supports greater computing power and up to 96 GB DDR5 RAM making it the perfect choice for more demanding applications.

        Processor: Intel Core i3-1315U (13th Generation)

        Memory: Up to 96 GB DDR5 RAM

        Connections: HDMI 2.0b, DisplayPort 1.4, VGA

        Storage options: 1 × 6.4 cm (2.5“) HDD/SSD and 2 × M.2-SSD

        XPC slim DS50U5 – The powerhouse.

        This model packs an Intel Core i5-1334U processor (13th Gen.) and can also handle up to 96 GB DDR5 RAM. Perfect for professional applications that require more computing power.

        Processor: Intel Core i5-1334U (13th Generation)

        Memory: Up to 96 GB DDR5 RAM

        Connections: HDMI 2.0b, DisplayPort 1.4, VGA

        Storage options: 1 × 6.4 cm (2.5“) HDD/SSD and 2 × M.2-SSD
        Manufacturer no.:
        Article no.:
          Product information sheet
          Manufacturer no.:
          Article no.:
            Product information sheet
            XPC slim DS50U5 – The powerhouse.

            This model packs an Intel Core i5-1334U processor (13th Gen.) and can also handle up to 96 GB DDR5 RAM. Perfect for professional applications that require more computing power.

            Processor: Intel Core i5-1334U (13th Generation)

            Memory: Up to 96 GB DDR5 RAM

            Connections: HDMI 2.0b, DisplayPort 1.4, VGA

            Storage options: 1 × 6.4 cm (2.5“) HDD/SSD and 2 × M.2-SSD
            Manufacturer no.:
            Article no.:
              Product information sheet
              XPC slim DS50U7 – The record holder.

              This top-of-the-line model comes with an Intel Core i7-1355U processor (13th Gen.) for the highest performance and also supports up to 96 GB DDR5 RAM. Ideal for compute-heavy tasks.

              Processor: Intel Core i7-1355U (13th Generation)

              Memory: Up to 96 GB DDR5 RAM

              Connections: HDMI 2.0b, DisplayPort 1.4, VGA

              Storage options: 1 × 6.4 cm (2.5“) HDD/SSD and 2 × M.2-SSD

              The Shuttle DS50 is a series of compact, fanless mini PCs that deliver high performance, energy efficiency and flexibility. Supporting the latest Intel processors and with a wealth of connectivity options, they are the perfect choice for digital signage, IoT and media playback applications as well as a host of other professional use cases.

              Five’s the charm.

              Welcome to the latest addition – DL30N.


              This inconspicuous little black box has also been continuously optimised from one model generation to the next. Shuttle aims to offer reliable, versatile and energy-saving solutions and the XPC slim DL30N Barebone is ideal as a 24 × 7 media player for digital signage applications and kiosk control solutions as well as network applications that require several network cards.


              DL30 500x300
              Manufacturer no.:
              Article no.:
                Product information sheet

                Features:

                • With Intel® Processor N100
                • Up to 16 GB DDR5 memory
                • 2 × M.2 slots (1 × M.2-2280, 1 × M.2-2230)
                • 2 × 2.5 Gb Ethernet
                • 8 × USB 3.2 (5 Gb/s), 2 × COM
                • 1 × HDMI 2.0b, 1 × DisplayPort 1.4a, 1 × VGA
                • Space for 1 × 6.4 cm (2.5“) HDD/SSD and NVMe SSD
                • For 12 or 19 V DC
                • Remote power-on

                TIP – Heard of Shuttle Built-To-Order?

                All Shuttle Barebones are available as complete systems in the configuration of your choice in accordance with the BTO principle for all order quantities from 1 device up. Just get in touch.
