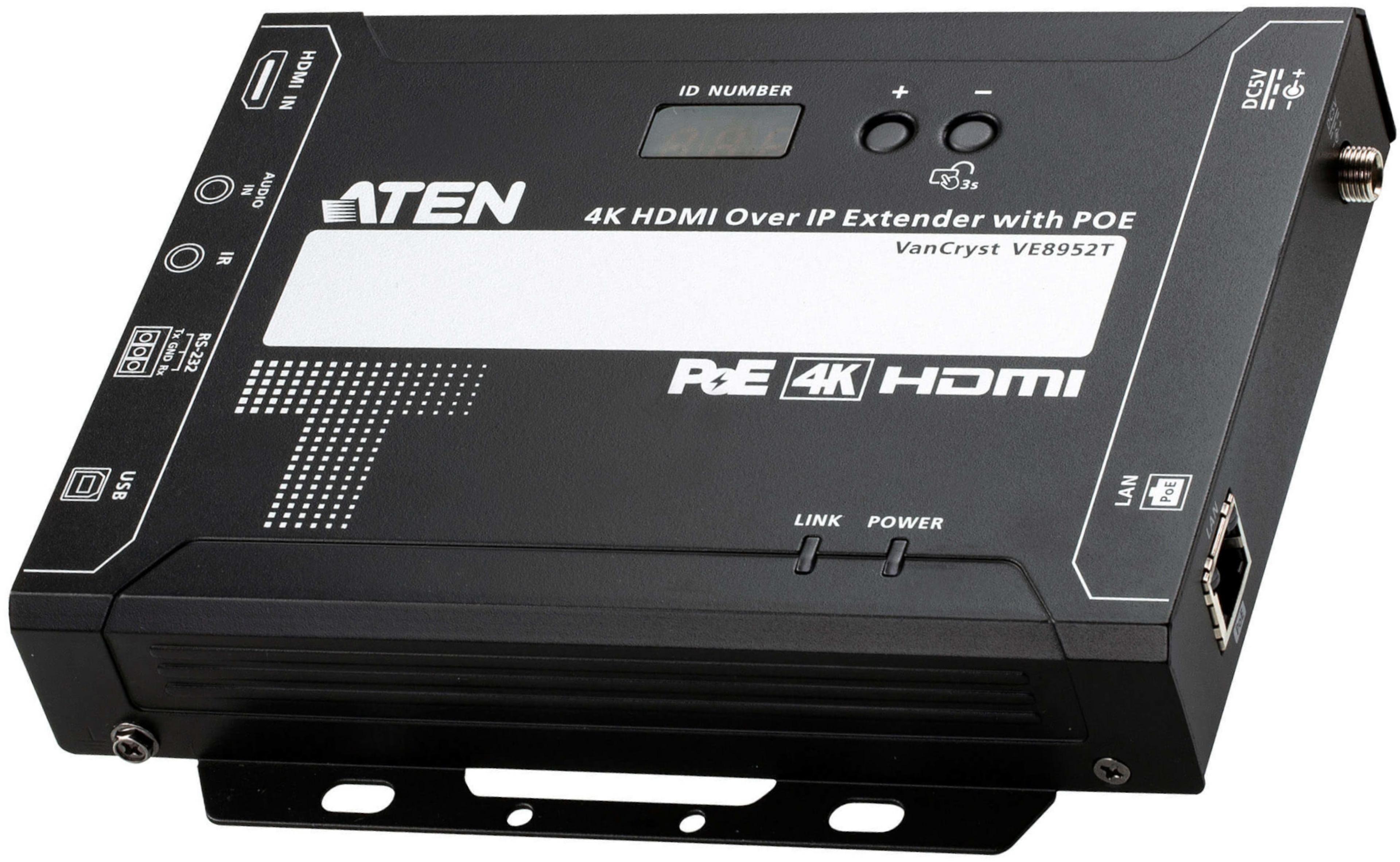

An HDMI IP Extender consists of a transmitter and a receiver unit.
The package only includes the transmitter unit. A compatible receiver is available separately (ref. no.: VE8952R-AT-G). This unit allows HDMI signals to be extended up to 100 m, providing an ideal solution when standard HDMI lengths are insufficient. The transmitter and receiver are connected via the network (IP). Supports resolutions of up to 4 K and Power over Ethernet (PoE).
Transmits HDMI, audio and RS-232 signals
The transmitter and receiver connect via IP (network) or a shielded Cat5e (or better) RJ45 cable up to 100 m
For video wall setups, a point-to-multipoint installation with a Gigabit switch is required (max. 8 x 8)
One receiver is required per display
Max. HDMI cable length: 3 m
Supports resolutions up to 4096 x 2160 at 30 Hz 4: 4: 4
HDCP compatible
Powered with AC adapter or PoE
Metal housing
Connections: 1 x HDMI (A) female, 1 x 3.5 mm audio female, 1 x 3.5 mm audio (IR) female, 1 x RJ45 female, 1 x USB-B female (control), 1 x 3-pin female (RS-232), 1 x DC female
Includes: 1 x AC adapter, 1 x RS-232 terminal block
