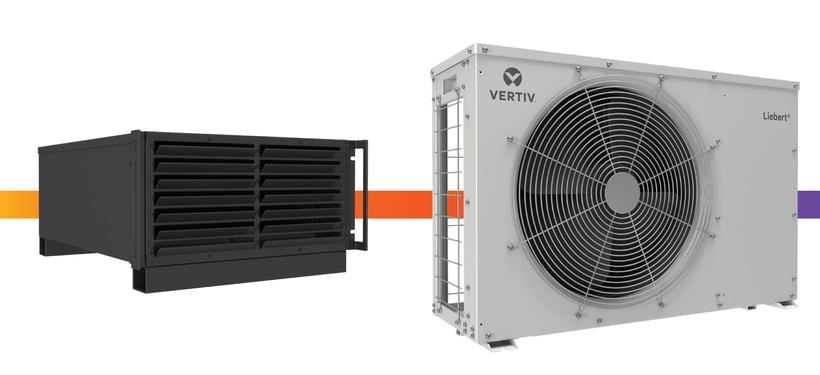

Cooling system for closed racks consisting of rack cooling unit and outdoor unit for roof or wall mounting
Required U in rack: 6
Required rack depth: 1000 mm
Input voltage air conditioners: 230 V / 50 Hz
Total current inside/outside: 1.5 A / 7.2 A
Refrigerant: R410A
Net cooling capacity: 3500 W (12,000 BTU/h)
Interior dimensions: 442 x 264 x 602 mm (W x H x D)
Interior weight: 23 kg
Exterior dimensions: 786 x 527 x 282 mm (W x H x D)
Exterior weight: 44 kg
Coolant pipe max. 30 m long
Can be mounted on a level service or a wall bracket
Exterior unit operating temperature: Down to -15°C
Includes:
VRC rack compact cooling system 6 U
L-shaped rail set
SNMP card set
Condensation pump set
Display for remote indication
The system requires piping to the external chiller and should be installed by a specialist company.
