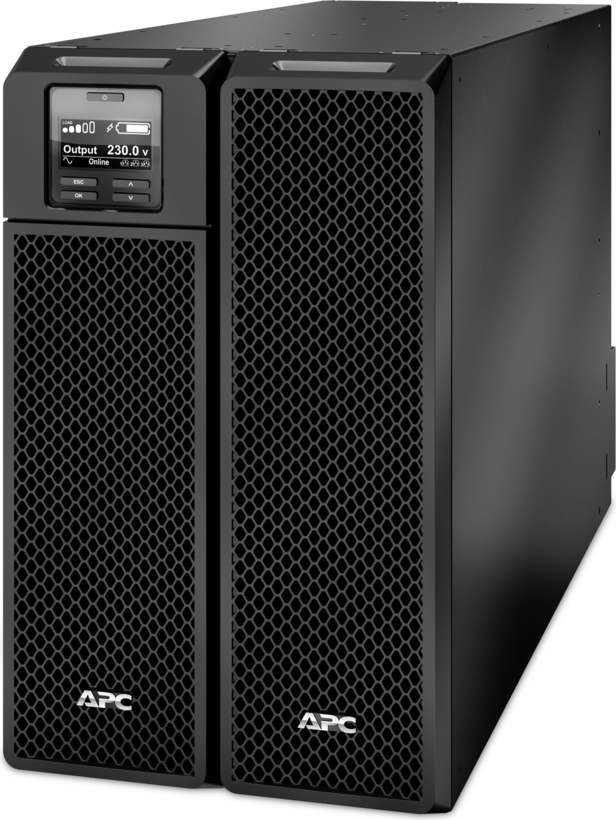

APC Smart-UPS SRT 10kVA 400/230V

Name: APC Smart-UPS SRT 10kVA 400/230V
Brand: APC by Schneider Electric
SKU: 901653
Price: 10211 EUR
Availability: InStock

Chassis type: Tower / rack convertible - Effective power: 10 kW - Apparent power (VA): 10 kVA - Technology: Double conversion (online)... more

(Review this product)

Gross price: €12,253.20 incl. €2,042.20 VAT excl. flat transaction fee/shipping costs

ECOLOGIC: €4.17 (excl. VAT)

Expected delivery on 9. September. Larger orders may incur extended delivery times.

Only a few items left in stock.

UPS for 230 V input; tower-rack convertible
LCD control panel
Incl. SNMP/network management card (RJ45)
SmartSlot for optional management accessories
USB and serial interfaces (with interface kit)
Universal I/O port with temperature sensor
EPO connection with EPO terminal block
Internal, automatic bypass
Input: Hardwired, 3-phase or 1-phase
Output: 1-phase, hardwire, 6 x IEC320-C13, 4 x IEC320-C19 (managed in groups)


The UPS must be installed by a qualified electrician.
Recommended wire gauge (1-phase input): 25 mm²
Recommended wire gauge (3-phase input): L1 = 25 mm², L2/L3 =16 mm²

APC Smart-UPS SRT 10kVA 400/230V

Product
Product type	UPS for servers / network
Manufacturer’s warranty	3-year exchange service for electronics, 2 years for batteries (see manufacturer's website for details)
Performance
Apparent power (VA)	10 kVA
Effective power	10 kW
Max. runtime (50% load)	11.0 min.
Max. runtime (100 % load)	4.0 min.
General
Technology	Double conversion (online)
Battery type	VRLA (lead acid)
Battery life	3 - 5 year(s)
Duration	Renewable
Network
SNMP / management	Integrated
Physical properties
Chassis type	Tower / rack convertible
Dimensions (W x H x D)	263 x 432 x 715 mm
Weight	114.0 kg
Sustainability
CO2e impact (acc. to manufacturer)	21,597 kgCO2e
CO2e benchmark (acc. to manufacturer)	ISO 14040
Version
Version	Europe
