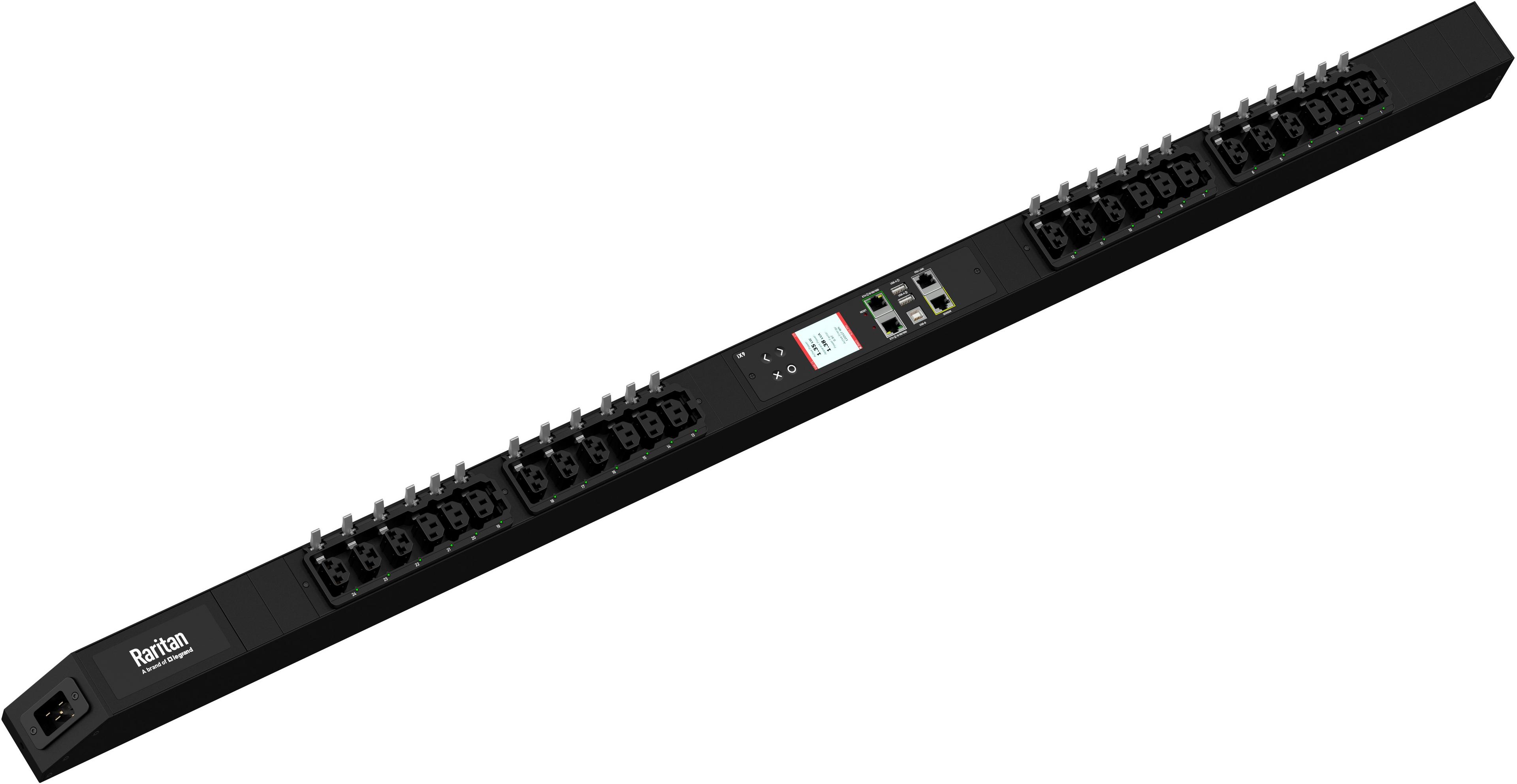

The Raritan PX4-13A8C-C8E7M27A0 is an intelligent single-phase rack PDU designed for use in data centres and IT environments with residual current monitoring (RCM).
It provides precise Class 0.5 energy monitoring, extensive network management capabilities (SNMP, HTTPS, Redfish API, Modbus-TCP), hot-swappable controllers and support for environmental sensors. With 24 IEC locking outlets (C13 and Cx) and SecureLock technology, it ensures secure power distribution. The PX4 series supports daisy-chaining of up to 32 PDUs over Ethernet and is ideal for highly available and scalable power infrastructures.
Single-phase supply 100-240 V, 16 A
Power capacity up to 3.8 kVA (at 240 V)
24 IEC locking outlets (12 x C13, 12 x Cx) with SecureLock
Residual-current monitoring (Type B)
Network: HTTPS, SSH (CLI), Telnet, RS-232 (serial), SNMP version V3, SMTP, JSON-RPC API, Modbus-TCP, Redfish API
Daisy-chaining: 16 x USB, 32 x Ethernet; PDU-link: up to 8 units
Height: 1298 mm
Width: 56 mm
Depth: 65 mm
Designed for international use.
