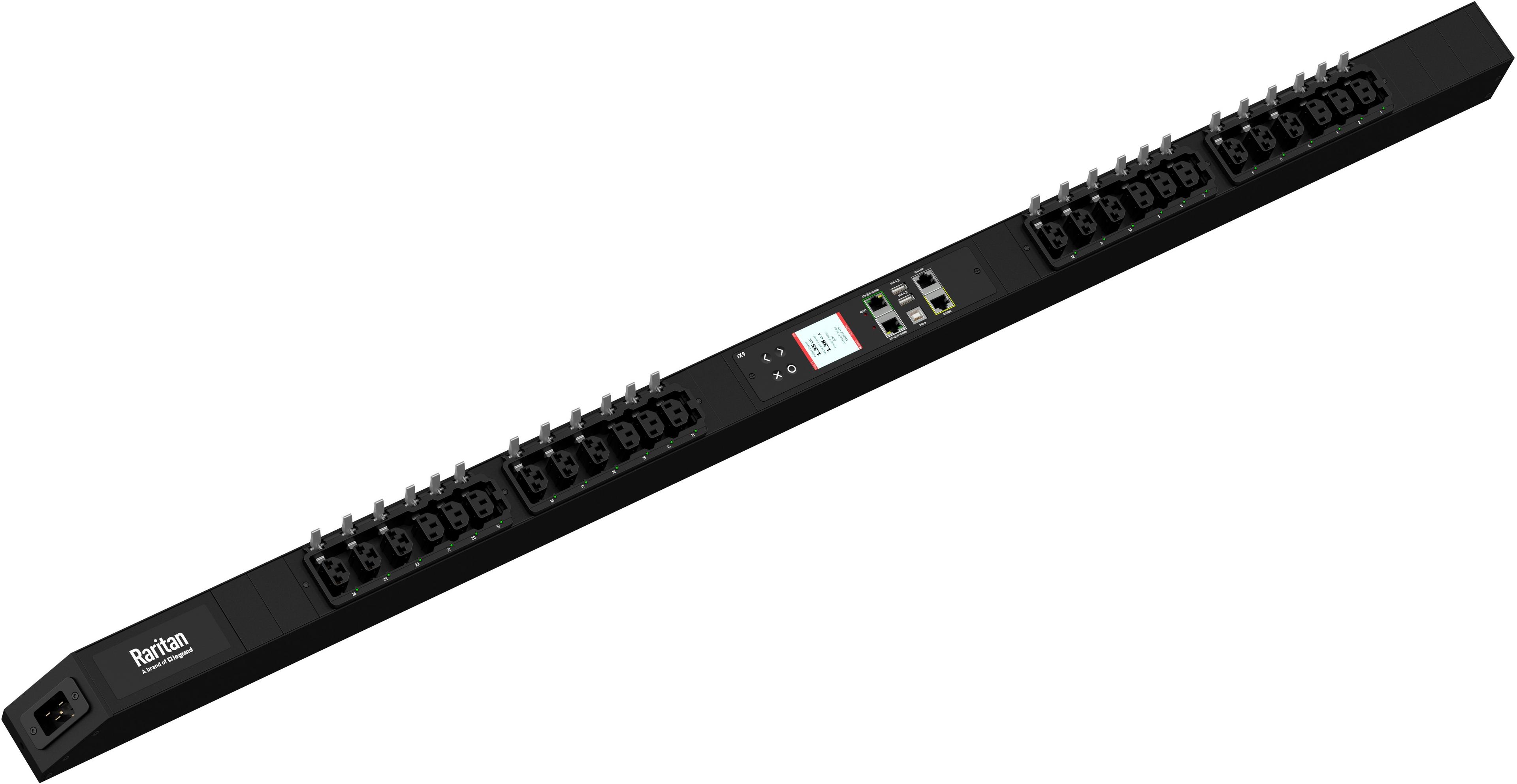

The Raritan PX4-23A8C-C8E7A0 is an intelligent, inlet-metered and switched PDU designed for demanding data centre environments. It features an IEC C20 inlet (100-240 V, 1-phase), supports loads of up to 3.8 kVA, and provides 24 outlets (12 x IEC C13 and 12 x combined C13/C19). The PDU supports remote management via web interface, SNMPv3, Redfish API, and mobile app control for iOS and Android.
Key features: Billing-grade metering, hot-swappable controller, support for environmental sensors, outlet locking, daisy-chaining of up to 32 PDUs.
Single-phase supply 100-240 V, 16 A
Power capacity up to 3.8 kVA (at 240 V)
24 locking IEC outlets (12 x C13, 12 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Height: 1298 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
