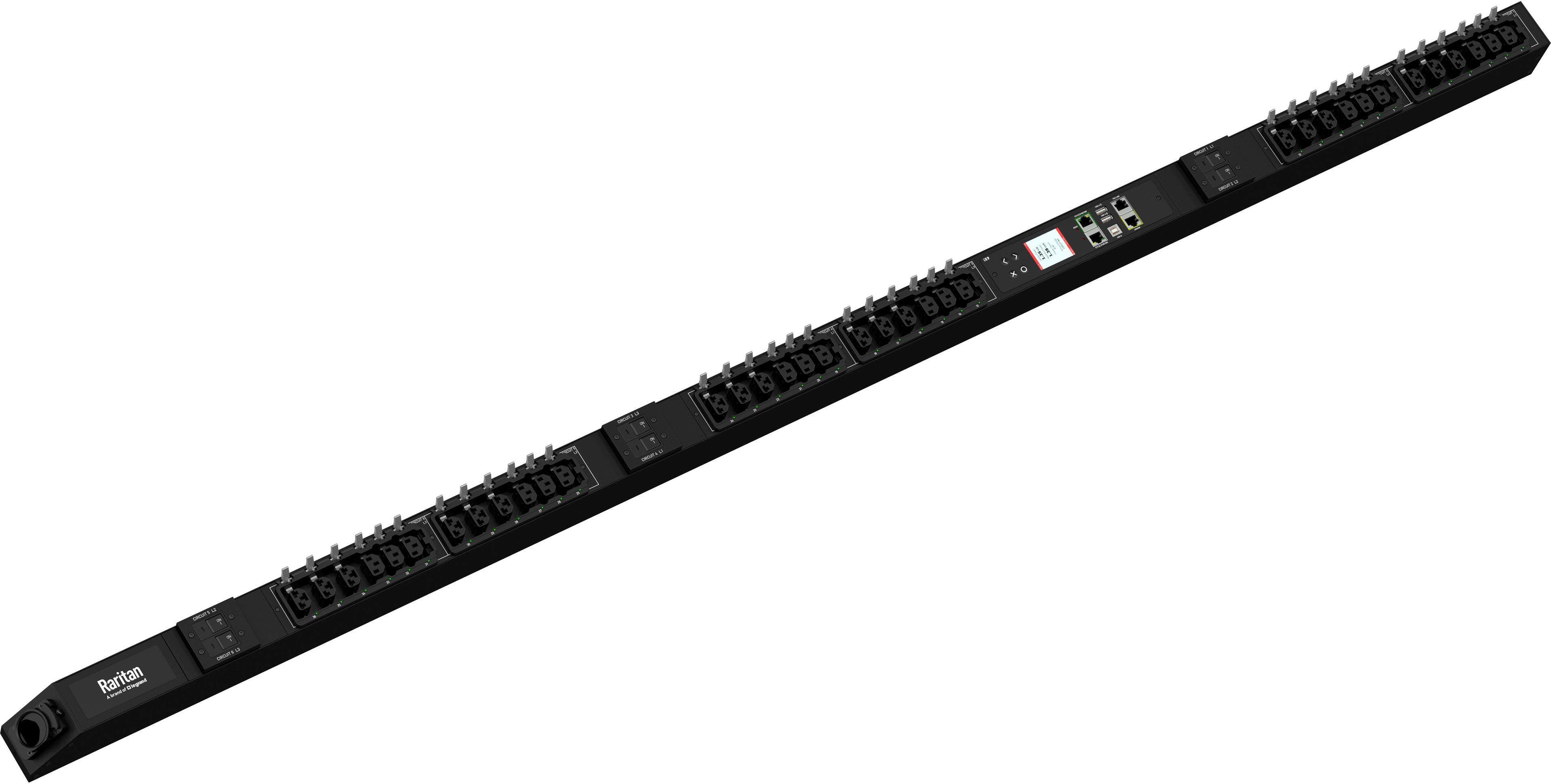

The Raritan PX4-2699-E7V2 is an intelligent, inlet-metered and switched PDU designed for high-performance data centre environments. It features an IEC 60309 32 A inlet (230/400 V Wye, 3-phase), supports loads of up to 23 kVA, and provides 36 outlets (18 x IEC C13 and 18 x combined C13/C19). The PDU supports remote management via web interface, SNMPv3, Redfish API, and mobile app control for iOS and Android.
Key features: Billing-grade metering, hot-swappable controller, support for environmental sensors, outlet locking, daisy-chaining of up to 32 PDUs. Ideal for direct connection to UPS systems.
Three-phase (Wye) power supply, 230 V
Power capacity up to 23 kVA (at 415 V)
36 locking IEC outlets (18 x C13, 18 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Height: 1780 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
