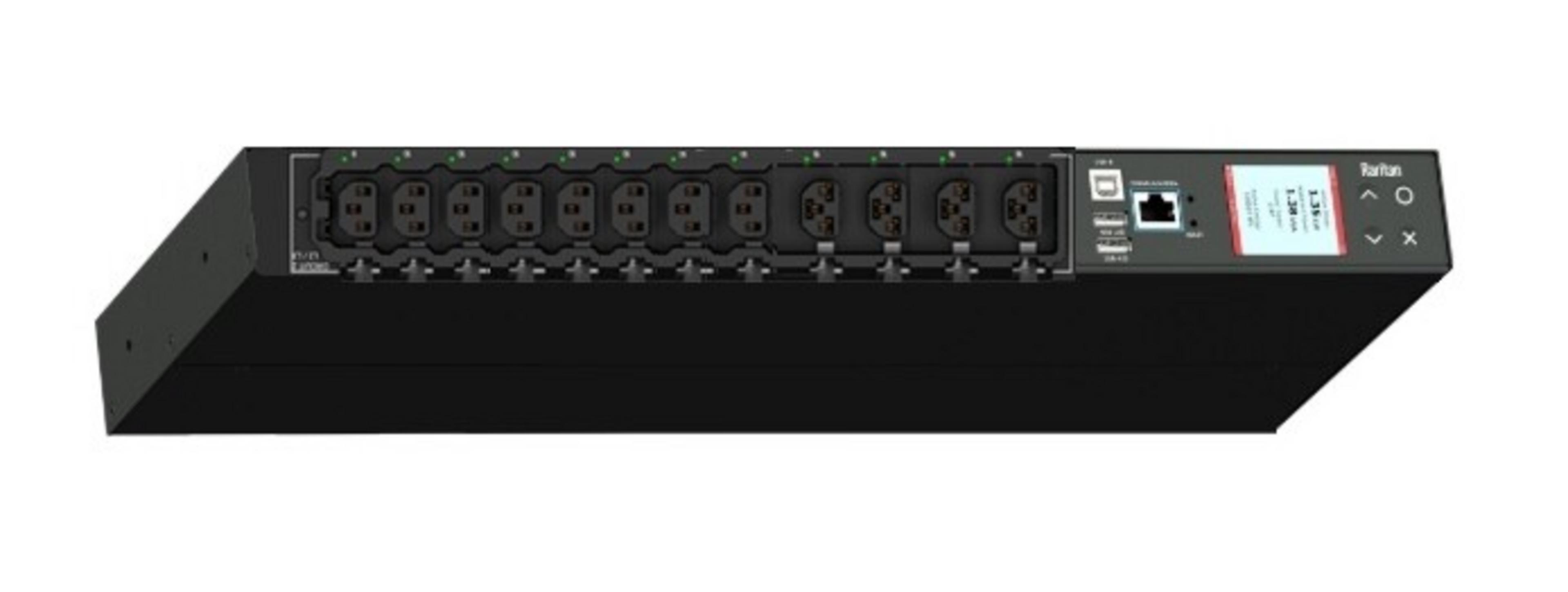

The Raritan PX4-5256CR-C8E8A0 is an intelligent, horizontally mounted power distribution unit (PDU) for data centre environments, with a 1-phase 100-240 V input and a power capacity of up to 3.8 kVA. It provides 12 outlets (8 x C13 and 4 x combined C13/C19) and supports individual metering and switching per outlet, as well as billing-grade energy and power quality measurement (±0.5%).
With remote management via HTTP(S), SNMPv3 and Redfish API, mobile app control for iOS and Android, Wi-Fi capability, and a hot-swappable controller, it is well suited to high-availability environments.
Key features: Daisy-chaining of up to 32 PDUs, environmental monitoring support with up to 32 sensor functions, ISO 27001 compliant and IPv6 Ready.
Single-phase power supply, 100-240 V
Power capacity up to 3.8 kVA (at 240 V)
12 IEC outlets: 8 x C13 (10 A), 4 x Cx (16 A)
Energy metering: Class 0.5, measurement per input line
Network: HTTPS, SSH, Telnet, SNMPv3, JSON-RPC, MODBUS-TCP, Redfish, RS-232
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Hot-swappable controller
Height: 44 mm
Width: 440 mm
Depth: 183 mm
For international use
