Raritan

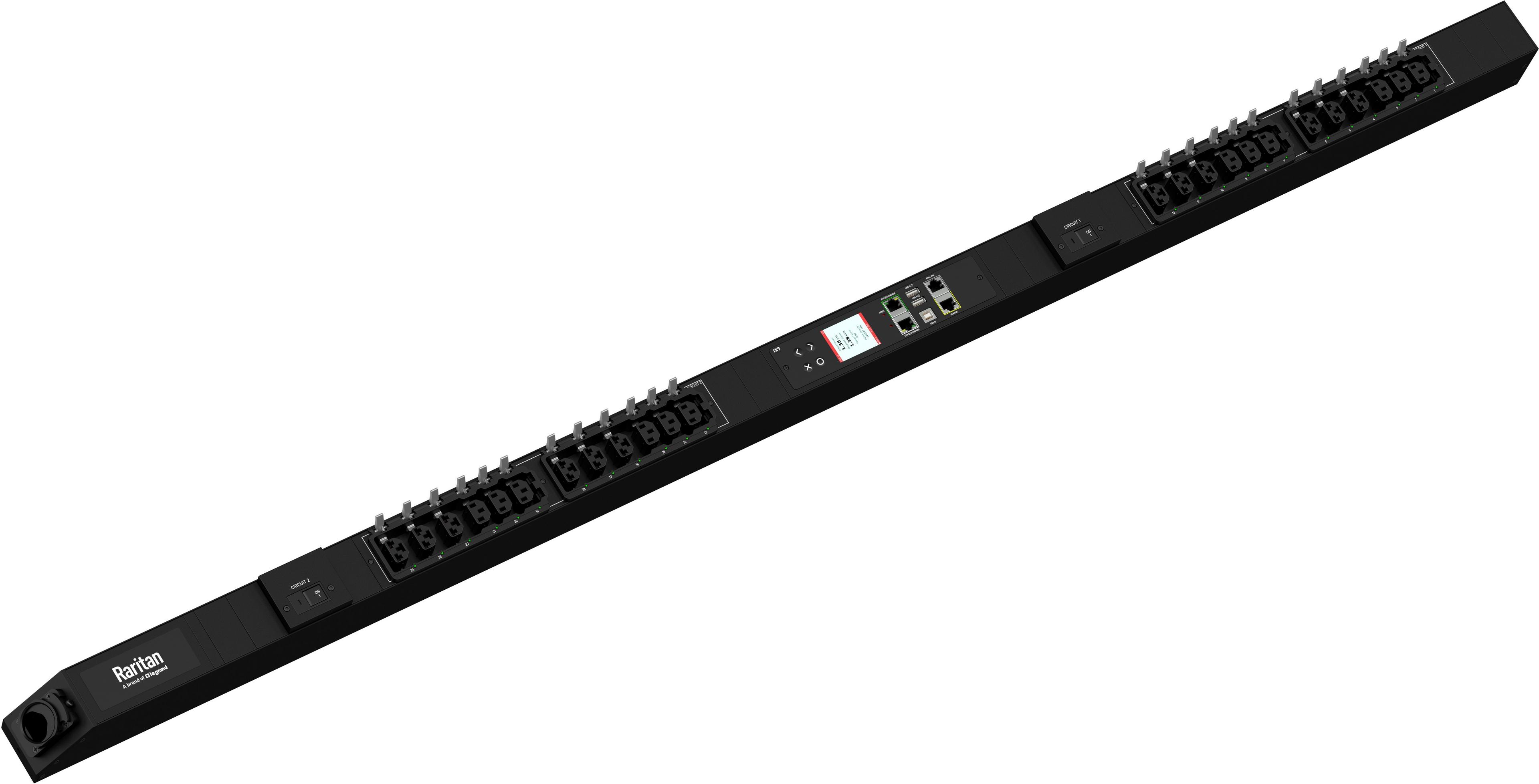

Raritan PX4-5161 1PH 230V 32A PDU
Rack mounting: Vertical - Direct connection to UPS: Yes - Input connection: IEC 309, 230 V, 32 A (blue) - Managed: Yes... more
€1,648.00€1,648.00
Gross price: €2,010.56 incl. €362.56 VAT excl. flat transaction fee/shipping costs
Order now and we’ll ship this item as soon as it becomes available.
Currently out of stock.
The Raritan PX4-4699-E7V2 is an intelligent, inlet and outlet-metered PDU designed for high-performance data centre environments. It features an IEC 60309 32 A inlet (230/400 V Wye, 3-phase), supports loads of up to 23 kVA, and provides 36 outlets (18 x IEC C13 and 18 x combined C13/C19).
The PDU supports billing-grade metering per inlet and outlet, a hot-swappable controller, environmental sensor support, and comprehensive remote management via web interface, SNMPv3, Redfish API, and mobile apps for iOS and Android.
Three-phase (Wye) power supply, 230 V
Power capacity up to 23 kVA (at 415 V)
36 locking IEC outlets (18 x C13, 18 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Height: 1780 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
The Raritan PX4-5161-E7 is an intelligent, vertically mounted power distribution unit (PDU) for data centre environments, with a 1-phase 230 V/32 A input and a power capacity of up to 7.4 kVA. It provides 24 outlets (12 x C13 and 12 x combined C13/C19) and supports individual metering and switching per outlet, as well as billing-grade energy and power quality measurement.
With remote management via HTTP(S), SNMPv3 and Redfish API, mobile app control for iOS and Android, Wi-Fi capability, and a hot-swappable controller, it is well suited to high-availability environments.
Key features: Daisy-chaining of up to 32 PDUs, environmental monitoring support, mechanical outlet locking
Single-phase power supply, 230 V
Power capacity up to 7.7 kVA (at 240 V)
24 locking IEC outlets (12 x C13, 12 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Height: 1539 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
Raritan PX4-5161 1PH 230V 32A PDU
| Product | |
|---|---|
| Product type | Power distribution unit |
| Manufacturer’s warranty | 2-year bring-in (see manufacturer's website for details) |
| General | |
| Input phases | 1-phase 230 V |
| Direct connection to UPS | Yes |
| Input connection | IEC 309, 230 V, 32 A (blue) |
| Load capacity (max kVA.): | 7.4 kVA |
| Managed | Yes |
| Individual outlet control | Yes |
| Individual outlet metering | Yes |
| Mounting | |
| Rack mounting | Vertical |
| Special features | |
| Special features | Daisy-chain function |
| Physical properties | |
| Dimensions (W x H x D) | 56 x 1539 x 65 mm |
| Weight | 5.29 kg |
| Version | |
| Version | Europe |
