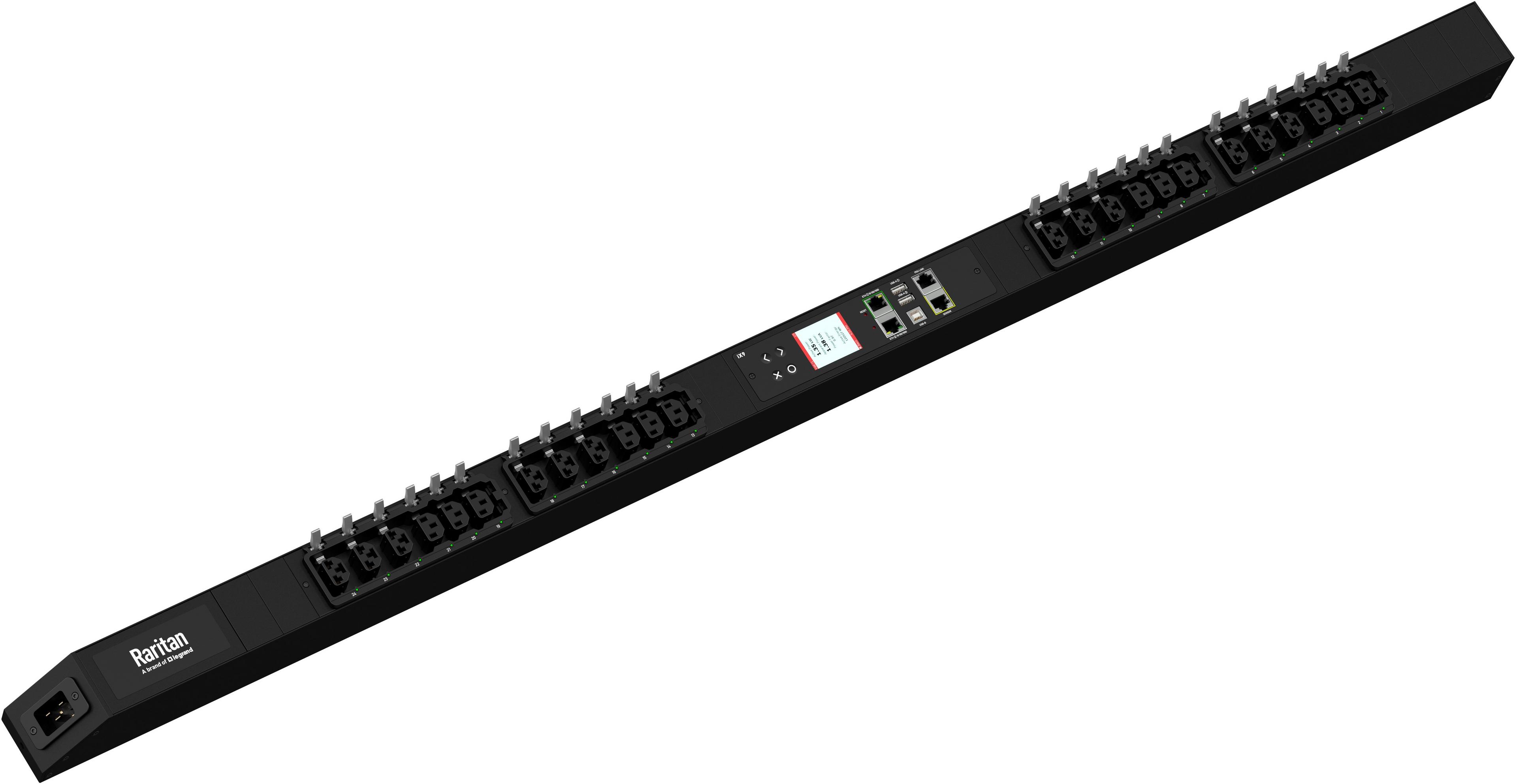

The Raritan PX4-53A8C-C8E7M27A0 is an intelligent, vertically mounted PDU designed for professional data centre environments. It operates with a 1-phase 100-240 V / 16 A input and supports a power capacity from 1.6 kVA to 3.8 kVA, depending on the input voltage. The PDU provides a total of 24 locking outlets (12 x IEC C13 Locking and 12 x Cx Locking), supporting individual metering and switching per outlet, complemented by billing-grade energy metering and comprehensive power quality monitoring.
With support for Redfish API, SNMPv3 and HTTPS management, optional Wi-Fi, redundant Gigabit Ethernet ports, and a hot-swappable iX12 controller, this PDU is well suited to high-availability, professional rack infrastructures. It also supports daisy-chaining of up to 32 PDUs and extensive environmental monitoring.
Single-phase power supply, 100-240 V
Power capacity up to 3.8 kVA (at 240 V)
24 IEC outlets: 12 x C13 (10 A), 12 x Cx (16 A)
Energy metering: Class 0.5, measurement per input line
Network: HTTPS, SSH, Telnet, SNMPv3, JSON-RPC, MODBUS-TCP, Redfish, RS-232
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Hot-swappable controller
Residual-current monitoring (Type B)
Height: 1298 mm
Width: 56 mm
Depth: 65 mm
For international use
