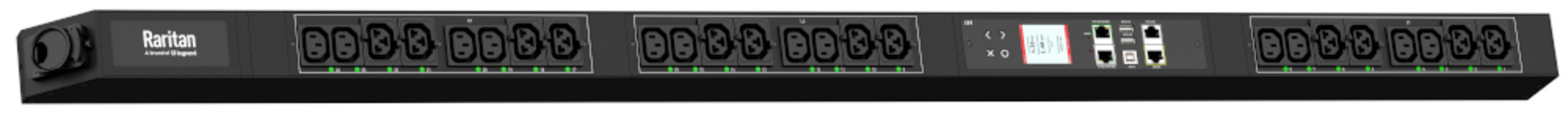

The Raritan PX4-5538-E7 is an intelligent, vertically mounted 3-phase PDU designed for demanding data centre environments. With a 415 V / 16 A input and a power capacity of 11.5 kVA, it delivers high power reserves along with billing-grade energy monitoring.
It provides 24 locking outlets (12 x IEC C13 Locking and 12 x Cx Locking), each supporting individual switching and metering. Comprehensive power quality monitoring, a hot-swappable iX12 controller, redundant network interfaces, and optional Wi-Fi ensure high operational reliability.
Support for daisy-chaining of up to 32 PDUs, environmental monitoring, and SecureLock technology makes it well suited to professional, high-availability server and storage environments.
Power capacity up to 11.5 kVA (at 415 V)
24 locking IEC outlets (12 x C13, 12 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Hot-swappable controller
Height: 1298 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
