APC by Schneider Electric

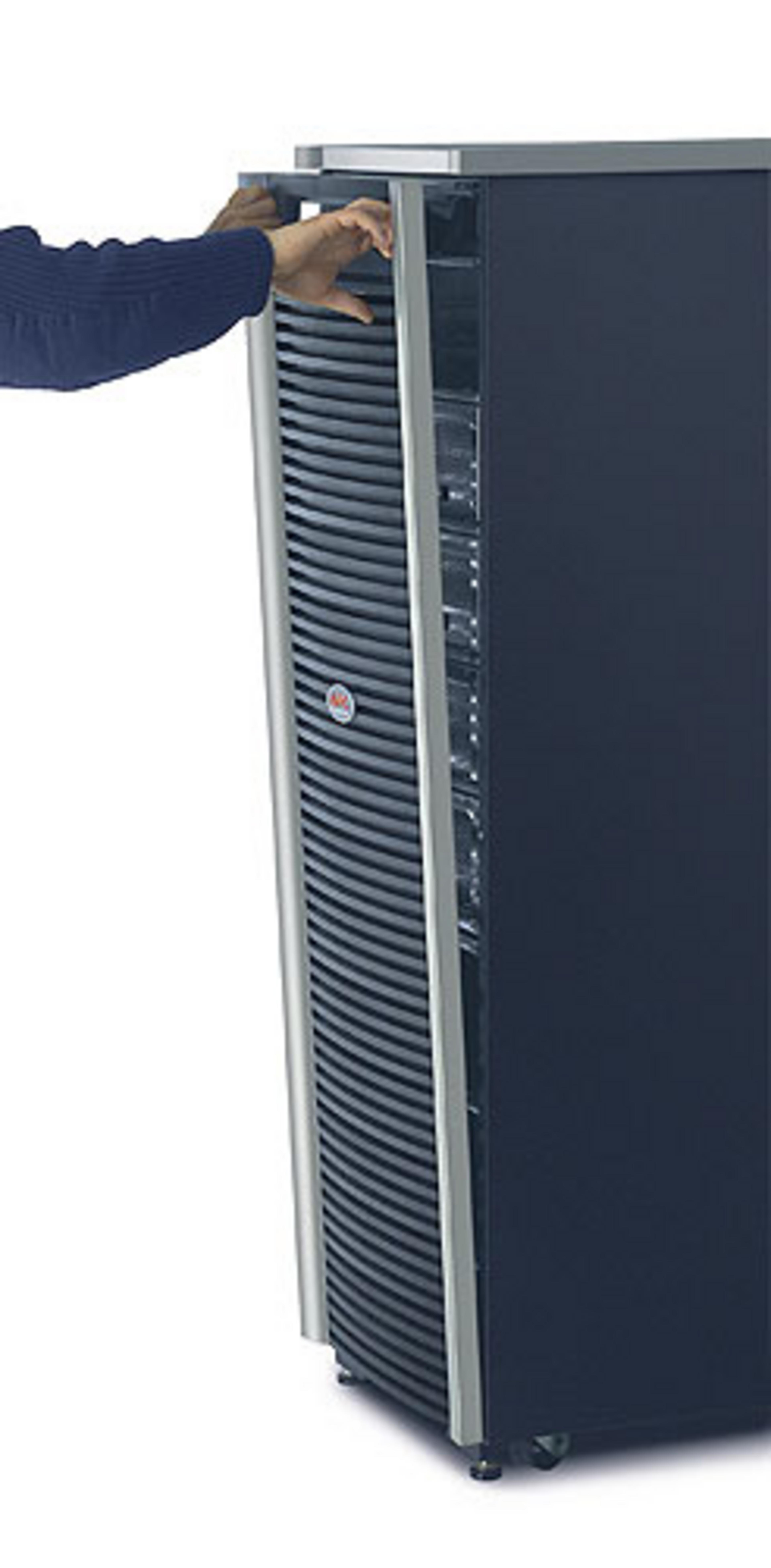

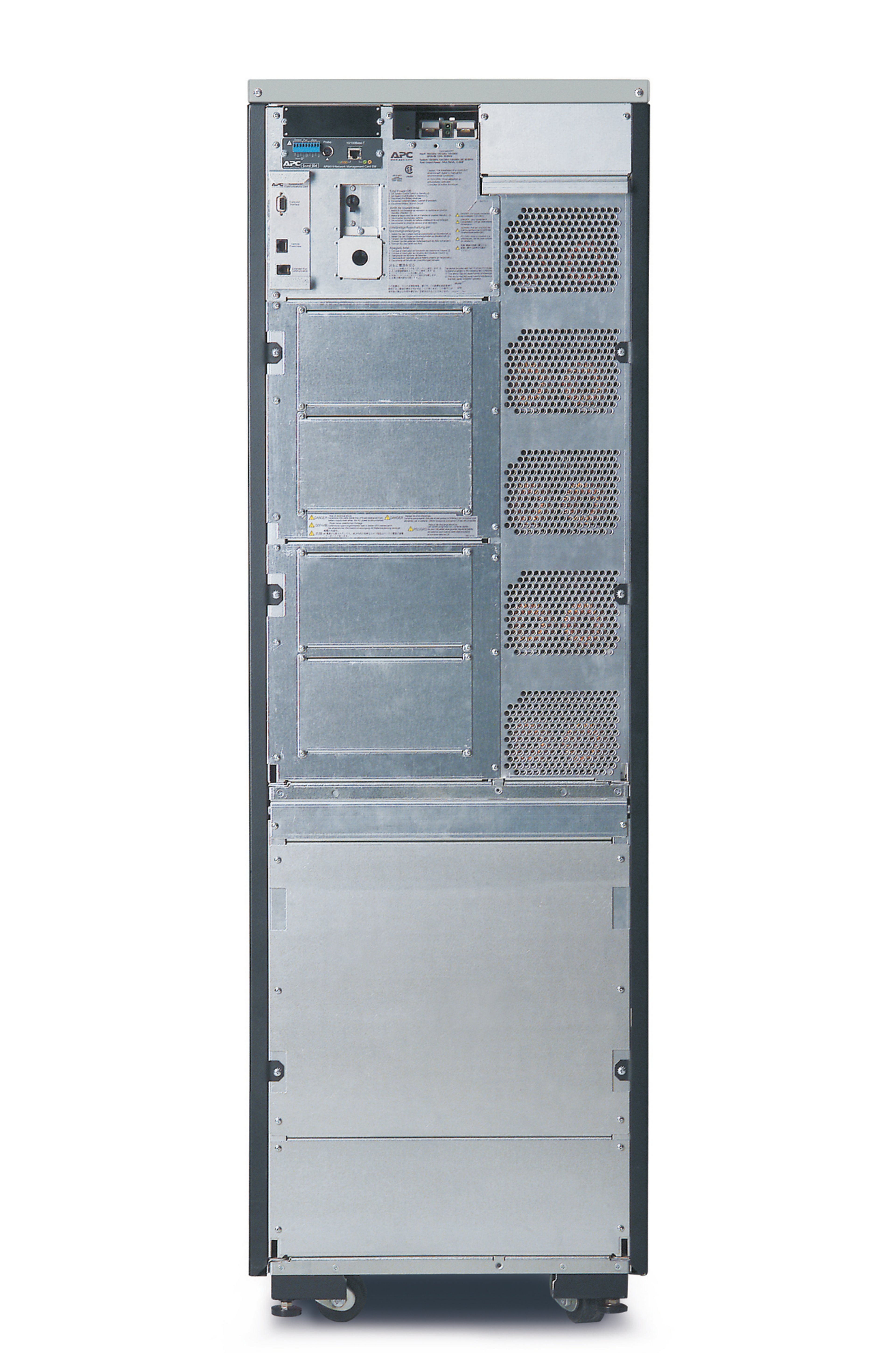

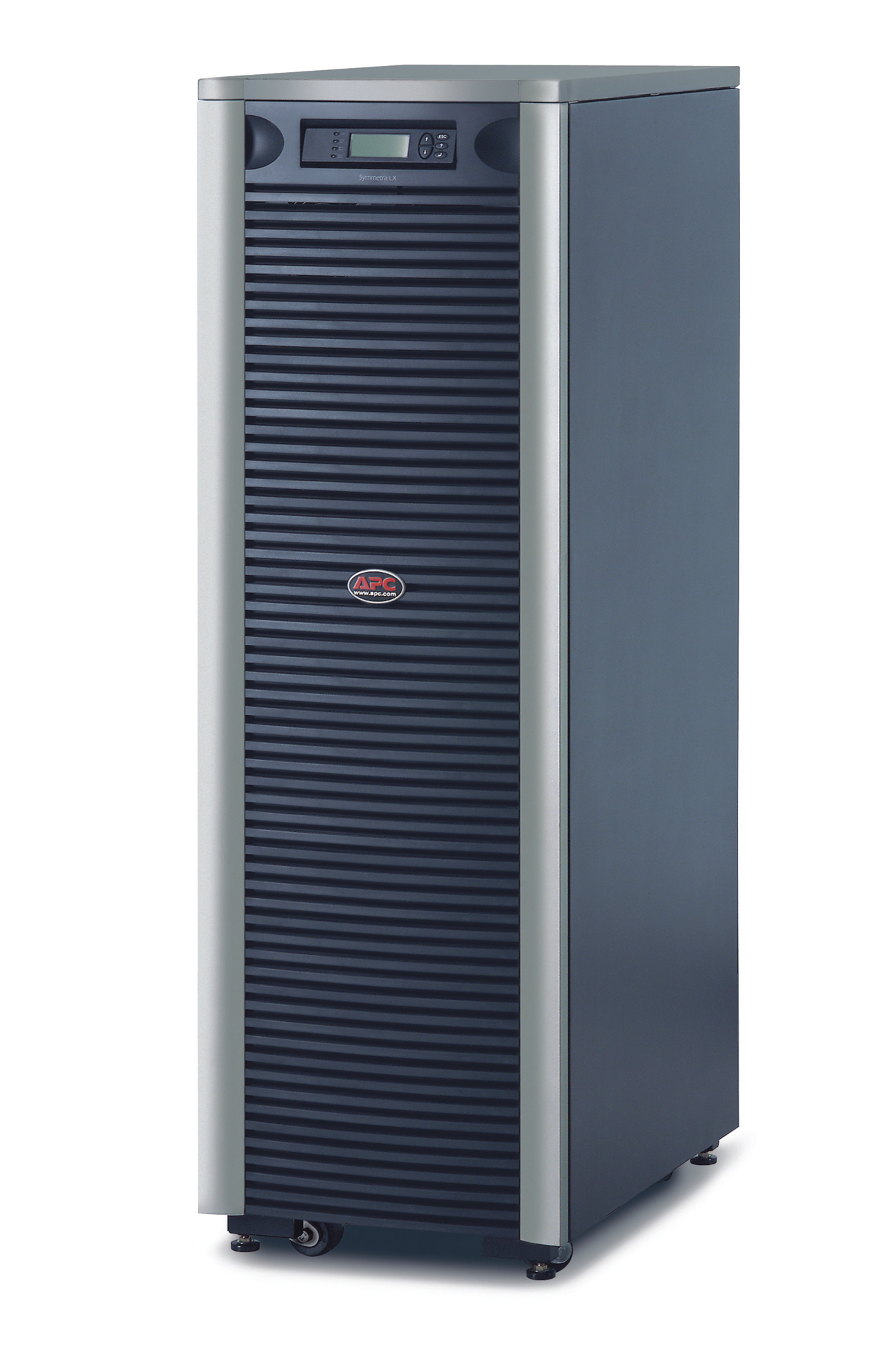

APC Symmetra LX UPS 16kVA Tower Ext. Run

Chassis type: Tower - Effective power: 11.2 kW - Apparent power (VA): 16 kVA - Duration: Renewable... more

To see prices, log in or register an account.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Redundant UPS system 4 power modules, each with 4 kVA, configurable for 12 kVA N+1 Scalable to 16 kVA N+1 Incl. 9× battery modules, scalable to 13 Input: 1 or 3-phase hardwire Output: 1-phase hardwire 230 V (3-wire) Incl. AP9631 network management card Dimensions: 1516x483x726 mm (H×W×D) Shipping weight: 536 kg incl. batteries Runtime (100% load): 25 minutes Runtime (50% load): 55 minutes . Important: the UPS must be connected by a professional electrician. Required shielding and wire gauge: 1-phase input/1-phase output: 100 A, 35 mm² 3-phase input/1-phase output: 1× 100 A/2x 50 A, 1× 35 mm²/2x 10 mm² . Please note that increased delivery costs may apply due to the high weight of the product.

APC Symmetra LX UPS 16kVA Tower Ext. Run

Product
Product typeUPS (redundant / scalable)
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)16 kVA
Effective power11.2 kW
Max. runtime (50% load)55.0 min.
Max. runtime (100 % load)24.0 min.
Physical properties
Chassis typeTower
Dimensions (W x H x D)483 x 1516 x 726 mm
Weight504.0 kg
Network
SNMP / managementIntegrated
General
Redundancy supportedYes
DurationRenewable
Country variant
Country variantEurope

Datasheets

APC Symmetra LX UPS 16kVA Tower Ext. Run - Data sheet 1

File type: PDF

File size: 134.17 KB
