ATEN

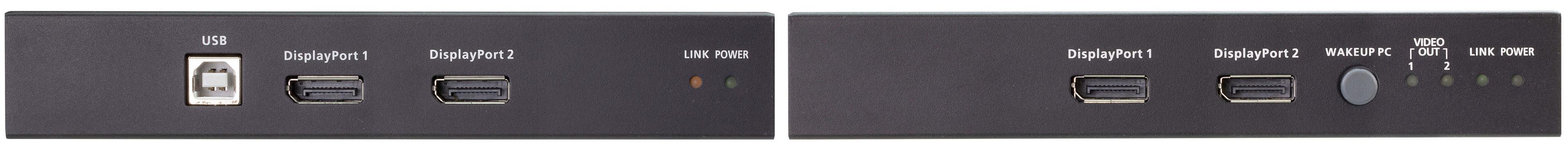

ATEN 2xDP HDBaseT Cat6 KVM Extender 100m
Connectors: 2 x DisplayPort - User console port: USB... more
To see prices, log in or register an account.
Order now and we’ll ship this item as soon as it becomes available.
Currently out of stock.
The Dual DisplayPort HDBase-T Extender consists of a transmitter and a receiver unit. It extends DisplayPort HDBase-T and USB signals over distances of up to 100 m--ideal when standard cable lengths aren't sufficient.
Transmits dual DisplayPort, USB, audio and RS-232 signals up to 100 m via Ethernet
Supports resolutions up to 1920 x 1080 pixels at 60 Hz over 100 m
The transmitter and receiver connect via an S/FTP Cat6 RJ45 patch cable
Receiver with 2-port USB hub (2 x USB 2.0 Type-A female) to connect additional peripherals
Supports HDCP
LED indicators
Integrated 8 KV / 15 KV ESD protection
Metal housing
Connections: Transmitter: 2 x DisplayPort female, 1 x USB 2.0 Type-B female, 2 x 3.5 mm Audio, 1 x DB9 female (RS-232), 1 x RJ45 female, 1 x DC female; receiver: 2 x DisplayPort female, 4 x USB 2.0 Type-A female, 2 x 3.5 mm audio, 1 x DB9 female (RS-232), 1 x RJ45 female, 1 x DC female
Includes: 2 x AC adapters, 2 x DisplayPort cables (male-male, 1.5 m), 2 x 3.audio cables (3.5 mm male - 3.5 mm male, 1.8 m / 1 x pink, 1 x green), 1 x USB cable (Type-A male - Type-B male, 1.8 m), 2 x mounting kits (for wall/desk mounting of transmitter and receiver)
ATEN 2xDP HDBaseT Cat6 KVM Extender 100m
| Product | |
|---|---|
| Product type | KVM extender via Catx (RJ45) |
| Manufacturer’s warranty | 2-year bring-in (see manufacturer's website for details) |
| Connectivity | |
| Connectors | 2 x DisplayPort |
| User console port | USB |
| Physical properties | |
| Weight | 1.7 kg |
| Version | |
| Version | United Kingdom |
