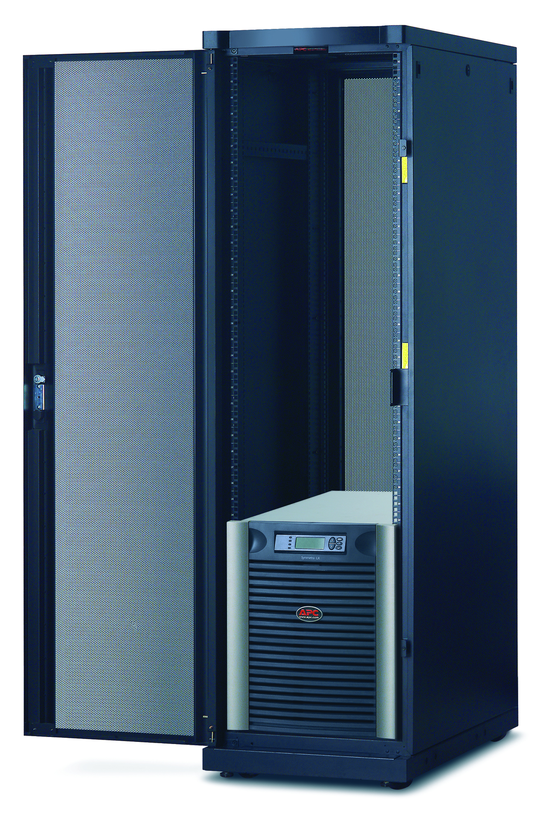

Example installation

    CHF 9’062.00

    Gross price: CHF 9’796.02 incl. CHF 734.02 VATexcl.

    Order now and we’ll ship this item as soon as it becomes available.

    Currently out of stock.

    Product no.:

    Manufacturer no.:

    Redundant UPS system 1× power module with 4 kVA, scalable to 8 kVA N+1 Input: 1 or 3-phase hardwire Output: hard wire 3-wire (PH+N + G) Incl. PDU with 8× IEC320-C13, 6× IEC320-C19 Incl. AP9631 network management card Extendable running time Net weight: 134 kg (incl. batteries) Runtime (100% load): 7 minutes Runtime (50% load): 18 minutes . Important: the UPS must be connected by a professional electrician. Required shielding and wire gauge: 1-phase input/1-phase output: 50 A, 10 mm² 3-phase input/1-phase output: 1× 50 A/2× 25 A, 1× 10 mm²/2× 4 mm² . Please note that increased delivery costs may apply due to the high weight of the product.

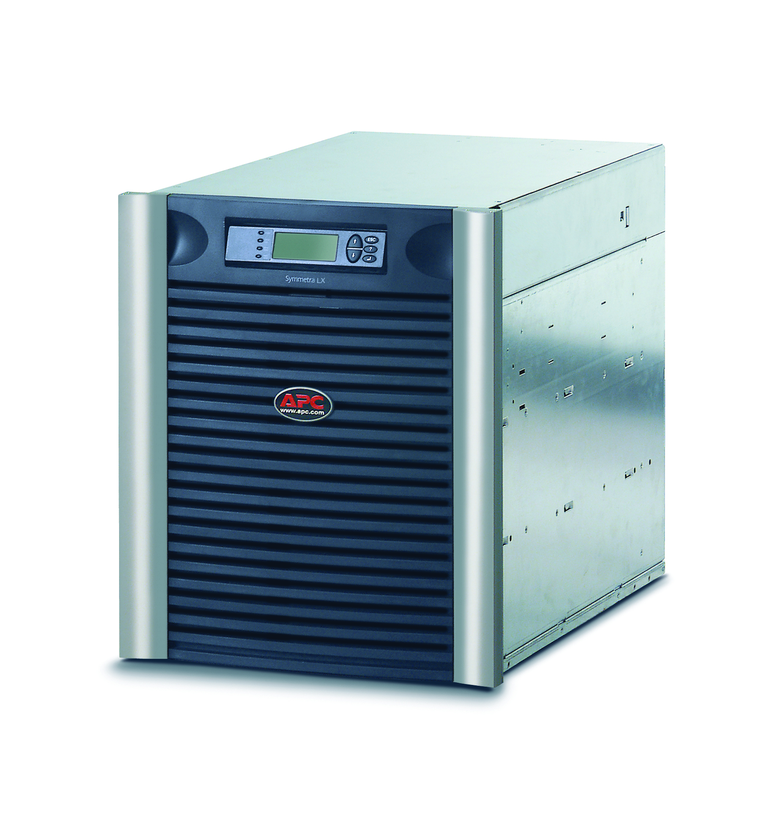

    APC Symmetra LX 4kVA Rack UPS 400/230V

    Product typeUPS (redundant / scalable)
    Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
    Apparent power (VA)4000 VA
    Effective power2800 W
    Runtime (50 % load, max.)20.0 min.
    Runtime (70 % load, max.)12.0 min.
    Runtime (100 % load, max.)7.0 min.
    Physical properties
    Chassis typeRack
    Rack units13 U
    Dimensions (W x H x D)472 x 572 x 688 mm
    Weight135.0 kg
    SNMP / managementIntegrated
    Redundancy supportedYes
