Lenovo

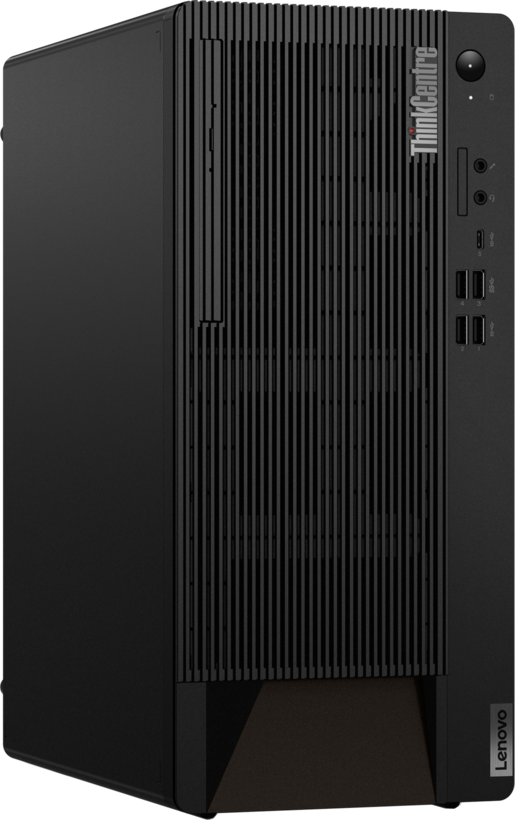

Lenovo ThinkCentre M90t G5 i7 16/512GB
Chassis type: Tower - Processor model: Intel Core i7-14700, 2.1 GHz - RAM: 16 GB - Graphics: Intel UHD Graphics 770 - SSD: 512 GB... more
(Review this product)
CHF 975.99CHF 975.99
Gross price: CHF 1’055.05 incl. CHF 79.06 VAT excl. flat transaction fee/shipping costs
Expected delivery on 24. February. Larger orders may incur extended delivery times.
Only a few items left in stock.
Processor
Intel (R) Core (TM) i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Graphics
Integrated Intel (R) UHD Graphics 770
Chipset
Intel (R) Q670 Chipset
Memory
1x 16GB UDIMM DDR5-4400
Memory Slots
Four DDR5 UDIMM slots, dual-channel capable
Max Memory
Up to 128GB DDR5
Storage
512GB SSD M.2 2280 PCIe (R) 4.0x4 Performance NVMe (R) Opal 2.0
Storage Support
Up to five drives, 2x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD
- 3.5" HDD up to 2TB
- 2.5" HDD bay is only for customer self upgrade
- M.2 SSD up to 2TB each
Card Reader
3-in-1 Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek (R) ALC897Q-CG codec
Speakers
2Wx1
Power Supply
500W 92%
DESIGN
Keyboard
USB Traditional Keyboard, Black, Swiss
Mouse
USB Calliope Mouse, Black
Optional Bay
None
Expansion Slots
One PCIe (R) 4.0 x16 (x4 signal), full-height, length = 205mm, height = 114.55mm
One PCIe (R) 4.0 x16, full-height, length = 268.5mm, height = 114.55mm
One PCIe (R) 3.0 x1, full-height, length = 205mm, height = 114.55mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color
Black
Stand
No stand
Dust Filter
None
Pen
Pen Not Supported
Form Factor
Tower (17L)
Dimensions (WxDxH)
170 x 298 x 376 mm (6.7 x 11.7 x 14.8 inches)
Weight
Around 6.5 kg (14.3 lbs)
CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Intel (R) Wi-Fi (R) 6E AX211, 802.11ax 2x2 + BT5.3, vPro (R)
WWAN
Non-WWAN
Front Ports
1x USB-C (R) (USB 10Gbps / USB 3.2 Gen 2), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Optional Front Ports (configured)
1x card reader
Rear Ports
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI (R) 2.1 TMDS
2x DisplayPort (TM) 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured)
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington (R) Security Slot (TM), 3 x 7 mm
Padlock Loop
Smart Cable Clip
None
Chassis E-Lock
None
Chassis Intrusion Switch
None
MANAGEABILITY
System Management
Intel (R) vPro (R) Enterprise
Lenovo ThinkCentre M90t G5 i7 16/512GB
| Product | |
|---|---|
| Product type | PC |
| Manufacturer’s warranty | 3-year extended on-site service (see manufacturer's website for details) |
| Processor | |
| Processor family | Intel Core i7 |
| Processor model | Intel Core i7-14700, 2.1 GHz |
| Motherboard chipset | Intel Q670 |
| Memory | |
| RAM | 16 GB |
| RAM type | DDR5 |
| Clock speed | 4400 MHz |
| RAM modules (built in / max.) | 1 / 4 |
| RAM (max.) | 128 GB |
| Graphics | |
| Graphics type | Onboard / - |
| Graphics | Intel UHD Graphics 770 |
| Storage | |
| SSD | 512 GB |
| SSD form factor | 1 x M.2 PCIe |
| Memory card reader | SD |
| Connectivity | |
| Slots / bays (available) | 1 x 6.4 cm (2.5") bay, 1 x 8.9 cm (3.5") bay, 1 x M.2 2280 PCIe, 1 x PCIe x1, 1 x PCIe x16, 1 x PCIe x16 (x4 elec) |
| Slots / bays (total) | 1 x 6.4 cm (2.5") bay, 1 x 8.9 cm (3.5") bay, 1 x M.2 2230 Wi-Fi, 1 x PCIe x1, 1 x PCIe x16, 1 x PCIe x16 (x4 elec), 2 x M.2 2280 PCIe |
| Network card | Ethernet 10/100/1000 Mb/s |
| Connectors | 1 x audio out, 1 x mic / headphones combo, 1 x HDMI, 1 x Microphone, 1 x RJ45, 1 x USB 3.2 Type-C, 2 x DisplayPort, 8 x USB 3.2 Type-A |
| Wireless | Bluetooth, WLAN |
| Operating system | |
| Operating system | Windows 11 Pro 64-bit |
| Security | |
| Security | Intel vPro technology, Kensington standard slot, TPM 2.0 |
| Protection rating | MIL-STD 810H |
| Special features | |
| Special features | NVMe |
| Features | |
| AC adapter | 500 W, Internal |
| Includes | |
| Includes | Lenovo USB Calliope Mouse, Lenovo USB Traditional Keyboard |
| Physical properties | |
| Chassis type | Tower |
| Dimensions (W x H x D) | 170 x 376 x 298 mm |
| Version | |
| Version | Switzerland |
