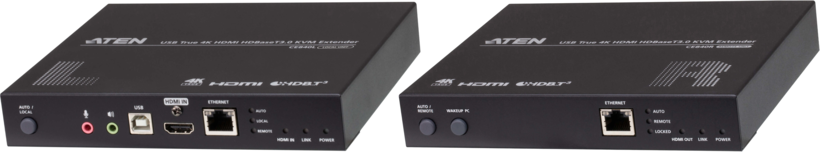

The HDMI KVM extender consists of a transmitter and a receiver unit. It allows HDMI and USB signals to be extended up to 100 m making it an ideal solution if a standard HDMI or USB cable length is not sufficient. Supports console access from both the local and the remote unit.
The transmitter and receiver connect via a shielded Cat6a RJ45 cable
Supports resolutions up to 3840 x 2160 at 60 Hz 4: 4: 4
Supports HDCP 2.2/2.3, LPCM 7.1-channel audio, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Metal housing
Connections: Transmitter: 2 x HDMI female, 2 x RJ45 female (1 x LAN, 1 x HDBaseT), 4 x USB-A female, 1 x USB-B female, 4 x 3.5 mm audio female, 1 x RS-232 (DB9) female, 1 x DC female; receiver: 1 x HDMI (A) female, 2 x RJ45 female (1 x LAN, 1 x HDBaseT), 4 x USB-A female, 2 x 3.5 mm audio female, 1 x RS-232 female (DB9), 1 x DC female
Includes: 2 x AC adapters, 1 x HDMI cable (male-male, 1.8 m), 2 x audio cables (3.5 mm male-male, 1.8 m - 1 x microphone, 1 x speaker), 1 x USB cable (Type-A - Type-B, 1.8 m), 2 x mounting kits (for wall/desk mounting of transmitter and receiver).
