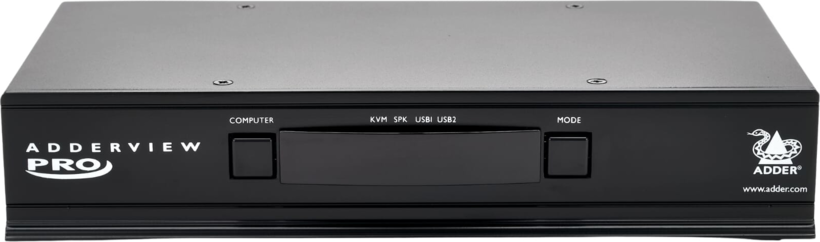

A KVM switch allows multiple PCs or servers to be controlled from a single monitor, keyboard and mouse. This product supports the connection of up to four computers via USB and DVI-I. Supports analogue audio via 3.5 mm audio jack.
Switching is performed via hotkey, 3-button mouse, a button on the switch, or an optional remote control (ref. AS-4RCU).
Supports resolutions of up to 2560 x 1600 at 60 Hz.
Supports mixed analogue and digital video
1 U
Suitable for installation into 48.3 cm (19") racks (optional rack kit: RMK3)
Compatible with Windows, Linux, Sun OS, macOS and other common operating systems.
Metal housing
Colour: Black
Connections: Connections: Input: 1 x DVI-I (24+5) ports, 2 x USB 2.0 Type A ports (keyboard/mouse), 2 x USB 2.0 Type A ports (additional peripherals), 1 x 3.5 mm audio jack, 1 x 10P10C (RJ45 / for firmware upgrade). 4 x DVI-I (24+5) ports, 4 x USB Type B ports, 4 x 3.5 mm audio jacks
Includes: 1 x AC adapter
Please note:
A warranty extension of up to five years is available as an option.
