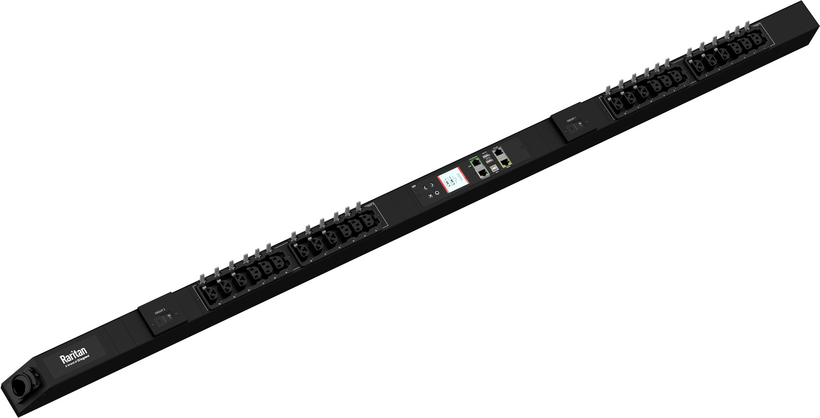

The Raritan PX4-51A0-E7M28V2 is an intelligent, vertically mounted power distribution unit (PDU) for data centre environments, with a 3-phase 415 V/16 A input and a power capacity of up to 11.5 kVA. It provides 36 outlets (18 x C13 and 18 x combined C13/C19) and supports individual metering and switching per outlet, as well as billing-grade energy and power quality measurement (±0.5%).
With remote management via HTTP(S), SNMPv3 and Redfish API, mobile app control for iOS and Android, Wi-Fi capability, and a hot-swappable controller, it is well suited to high-availability environments.
Daisy-chaining of up to 32 PDUs, environmental monitoring support with up to 32 sensor functions, mechanical outlet locking, ISO 27001 compliant and IPv6 Ready.
Three-phase power supply, 230 V
Power capacity up to 11.5 kVA (at 415 V)
36 locking IEC outlets (18 x C13, 18 x Cx)
Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP
Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB
Residual-current monitoring (Type B)
Height: 1780 mm
Width: 56 mm
Depth: 65 mm
For international use outside North America.
