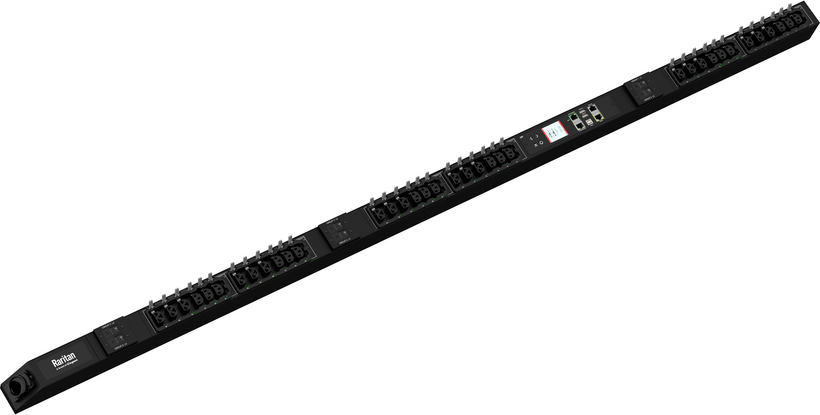

Raritan PX4-5699 3PH 400V 32A PDU

The Raritan PX4-5699-E7V2 is an intelligent, vertically mounted power distribution unit (PDU) for data centre environments, with a 3-phase 415 V/32 A input and a power capacity of up to 23.0 kVA. It provides 36 outlets (18 x C13 and 18 x combined C13/C19) and supports individual metering and switching per outlet, as well as billing-grade energy and power quality measurement (±0.5%). With remote management via HTTP(S), SNMPv3 and Redfish API, mobile app control for iOS and Android, Wi-Fi capability, and a hot-swappable controller, it is well suited to high-availability environments. Three-phase power supply, 230 V Power capacity up to 11.5 kVA (at 415 V) 36 locking IEC outlets (18 x C13, 18 x Cx) Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB Hot-swappable controller Residual-current monitoring (Type B) Height: 1780 mm Width: 56 mm Depth: 65 mm For international use outside North America.
