The HDMI KVM extender consists of a transmitter and a receiver unit. It allows HDMI and USB signals to be extended up to 300 m making it an ideal solution if a standard HDMI or USB cable length is not sufficient.
Transmits HDMI, USB, RS-232 and IR signals up to 300 m via fibre optics
The transmitter and receiver connect via an LC-terminated OM3 duplex fibre cable (50/125 µm) of the required length
Max. HDMI cable length: 5 m
Supports resolutions up to 4096 x 2160 at 60 Hz 4: 4: 4
Bandwidth: up to 10 Gb/s
Supports Deep Color, 3D, HDCP 2.2/2.3
LED indicators
Integrated 8 KV / 15 KV ESD protection
Plug and Play installation
Metal housing

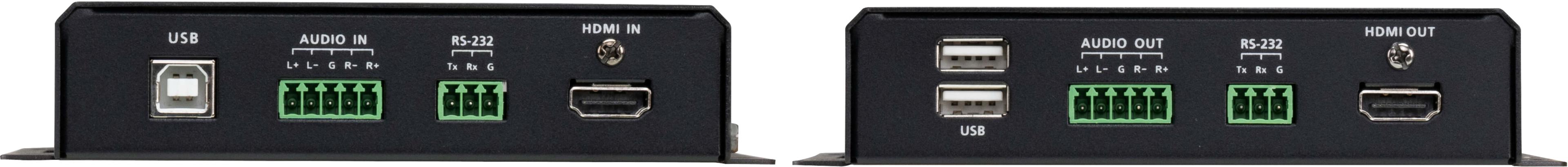

Connections: Transmitter: 1 x HDMI female, 1 x USB-B female, 1 x SFP+ slot (LC-duplex), 1 x 3.5 mm audio female (IR), 1 x 3-pin terminal block (RS-232), 1 x 5-pin terminal block (audio), 1 x USB Micro-B female (firmware upgrade), 1 x DC female, 1 x RJ45 female (Ethernet); receiver: 1 x HDMI female, 2 x USB-A female, 1 x SFP+ slot (LC-duplex), 1 x 3.5 mm audio female (IR), 1 x 3-pin terminal block (RS-232), 1 x 5-pin terminal block (audio), 1 x USB Micro-B female (firmware upgrade), 1 x DC female, 1 x RJ45 female (Ethernet)
Includes: 2 x AC adapters, 2 x SFP+ modules (10G, LC-duplex OM3), 1 x IR transmitter cable (1.8 m), 1 x IR receiver cable (1.8 m), 1 x USB cable (Type-B - Type-A, 1.8 m), 2 x 3-pin terminal blocks, 2 x 5-pin terminal blocks, 2 x HDMI-LockPros (for securing the HDMI cable to the extender)
