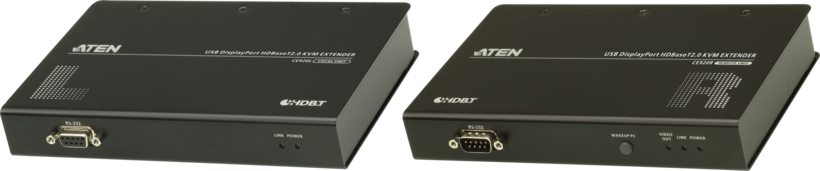

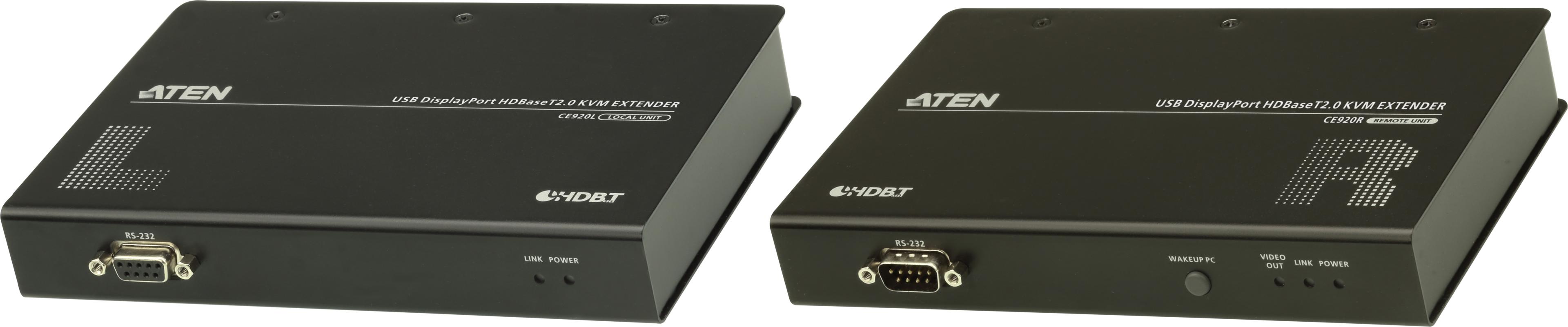

The DisplayPort extender consists of a transmitter and a receiver unit. It allows DisplayPort and USB signals to be extended up to 100 m This is an optimal solution if a standard DisplayPort cable length is not sufficient.
Supports resolutions up to 3.840 x 2.160 at 60 Hz
Transmitter and receiver are connected through the HDBaseT with an S/FTP Cat6 RJ45 patch cable with AWG24.
Integrated 8 KV / 15 KV ESD protection
LED display
Metal casing

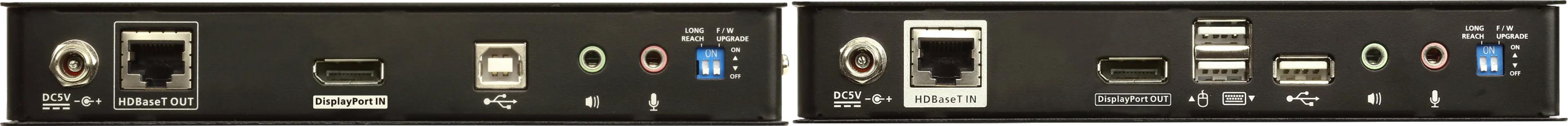

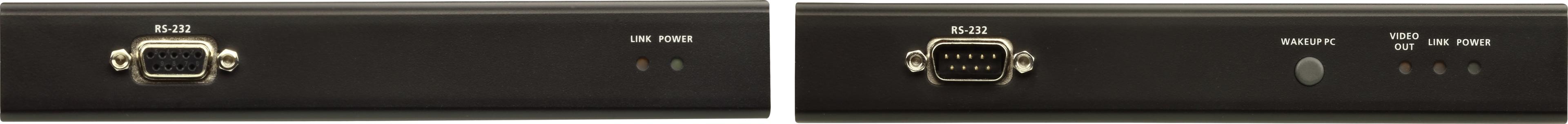

Connection: Transmitter: 1 x DisplayPort female, 1 x USB-B female, 2 x 3.5 mm audio jack female, 2 x RJ45 female (1 x HDBaseT), 1 x DC female; receiver: 1 x DisplayPort female, 3 x USB-A female, 2 x 3.5 mm audio jack female 2 x RJ45 female (1 x HDBaseT), 1 x DC female;
Includes: 2 x AC adapter, 2 x mounting set (for rack or wall mounting), cable set HDMI male - male/USB-A male - USB-B male, 2 x 3.5 mm audio jack - 3.5 mm audio jack 1.8 m
