SHUTTLE

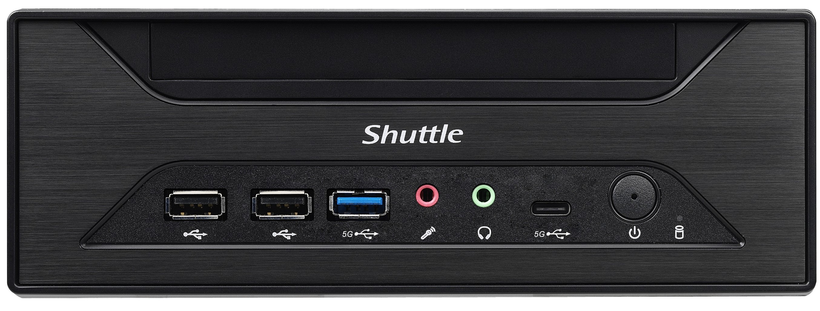

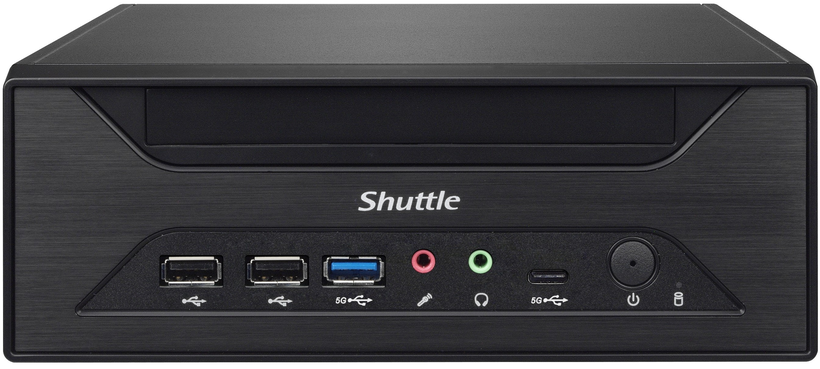

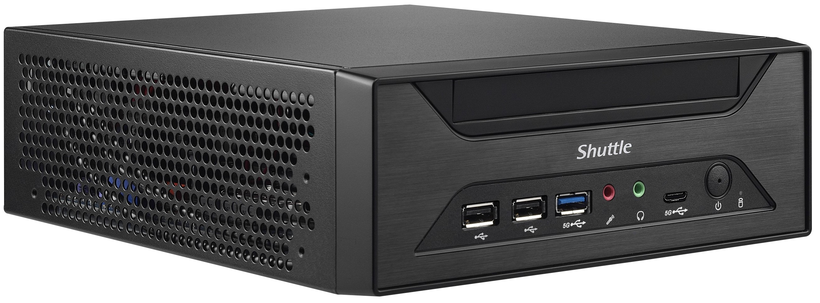

Shuttle XPC slim XH610 Barebone PC
Chassis type: Mini housing - Processor model: Optional - RAM: Optional - Graphics: Intel UHD Graphics - Operating system: -... more
The product is no longer available.
The Shuttle XPC slim XH610 Barebone PC is packed into a robust steel housing and can be fitted with an optical drive (available separately). Its heat pipe cooling system ensures quiet and reliable operation, while extensive connectivity options allow for a great number of use cases from typical office use to industrial applications.
Highlights:
- Space-saving design
- Supports two digital displays with Ultra HD resolution
- Power-On after Power Fail feature
- Versatile connectivity
Features:
Power supply: 120 W (fanless)
Includes:
- Multi-lingual installation instructions
- DVD with Windows drivers and PDF manuals
- Pre-installed SATA and power cables for a 2.5" drive and a slimline drive
- AC adapter with 1.8 m power cable with Schuko plug
- Protective cover for the CPU socket (do not use this if a heat pipe or cooler is installed in the system)
- Pre-installed CPU heat pipe cooling system with thermal gel
- Screws
Please note:
Please get in touch with us if you are interested in a custom configuration.
Shuttle XPC slim XH610 Barebone PC
| Product | |
|---|---|
| Product type | Barebone PC |
| Manufacturer’s warranty | 3-year bring-in (see manufacturer's website for details) |
| Processor | |
| Processor family | Optional |
| Processor model | Optional |
| Memory | |
| RAM | Optional |
| RAM (max.) | 64 GB |
| Graphics | |
| Graphics | Intel UHD Graphics |
| Storage | |
| SSD | Optional |
| Connectivity | |
| Connectors | 1 x audio in, 1 x audio out, 1 x DisplayPort, 1 x HDMI, 1 x headphones, 1 x VGA, 1 x DC in, 2 x microphone, 2 x RJ45, 2 x serial, 3 x USB 3.2 Type-A, 3 x USB 3.2 Type-C, 4 x USB 2.0 Type-A |
| Wireless | Optional |
| Operating system | |
| Operating system | - |
| Security | |
| Security | Kensington standard slot |
| Special features | |
| Special features | Fanless |
| Features | |
| AC adapter | 120 W, External |
| Physical properties | |
| Chassis type | Mini housing |
| Dimensions (W x H x D) | 200 x 73 x 238 mm |
| Version | |
| Version | Europe |
