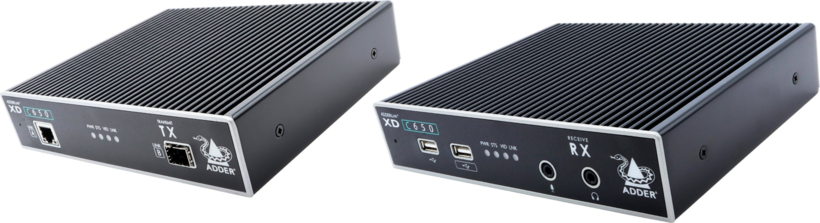

The DisplayPort KVM extender consists of a transmitter and a receiver unit. It allows DisplayPort and USB signals to be extended up to 100 m This is an optimal solution if a standard DisplayPort cable length is not sufficient. In addition, a second display (dual-head) can be connected on the receiver side. When used with an optional MST hub, up to four displays (quad-head - e.g. ref. MSTDP124DP) can be supported.
Supports resolutions of up to 4096 x 2160 at 60 Hz with one monitor, up to 2560 x 1600 pixels at 60 Hz with two monitors, and up to 1920 x 1200 pixels at 60 Hz with three or four monitors.
Connection between transmitter and receiver via S/FTP Cat6 RJ45 cable or better, up to 100 m
With fibre SFP modules fitted, link distances of up to 4 km are possible (e.g. SFP-MM-LC-10G up to 500 m; SFP-SM-LC-10G up to 4 km).
Receiver with 2-port USB hub
Metal housing
Connections: Transmitter: 1 x DisplayPort ports, 2 x USB 2.0 Type B ports, 1 x RJ45 port, 1 x 3.5 mm audio jack, 1 x RJ12 port (for RS232), 1 x SFP slot (unpopulated); receiver: 2 x DisplayPort ports, 4 x USB 2.0 Type A ports, 1 x RJ45 port, 1 x 3.5 mm audio jack, 1 x RJ12 port (for RS232), 1 x SFP slot (unpopulated).
Includes: 2 x AC adapters (for transmitter and receiver), 1 x DisplayPort cable (plug-to-plug) 2 m (ref. VSCD18), 1 x USB Type A to Type B cable 2 m (ref. VSC24), 1 x 3.5 mm jack-to-jack audio cable 2 m.
Please note:
Extender set (ref. XD-C650P-DP-XX), consisting of the XD-C650T-DP transmitter and the XD-C650R-DP receiver.
A warranty extension of up to five years is available as an option.
