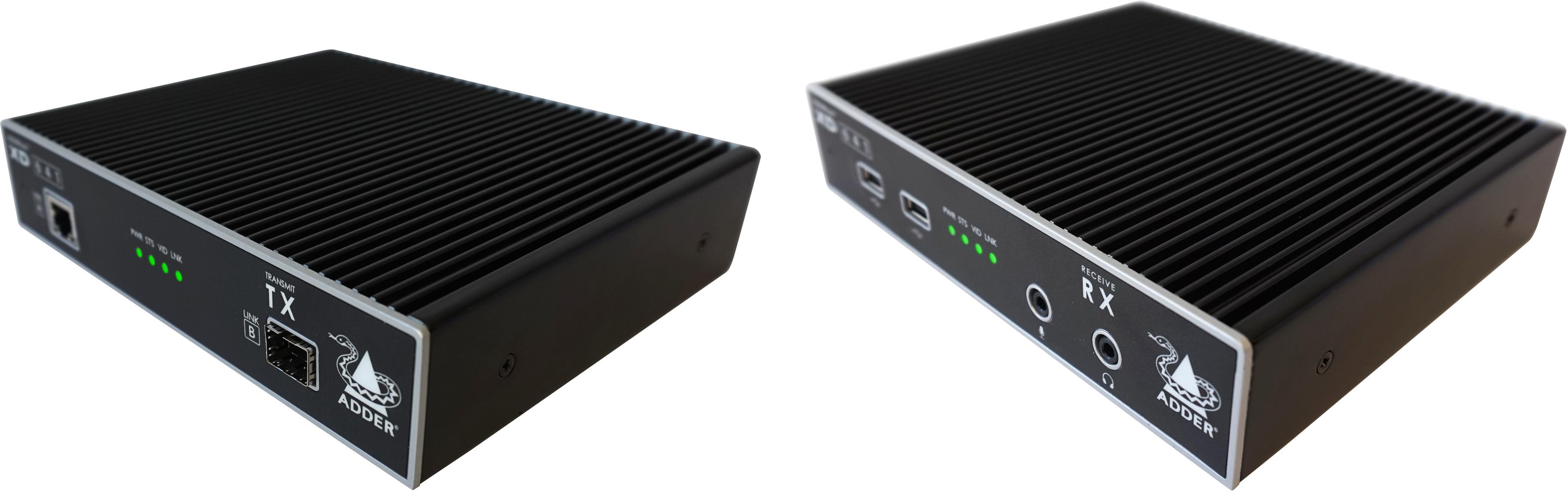

The DisplayPort KVM 4K extender consists of a transmitter and a receiver unit. It allows DisplayPort and USB signals to be extended up to 100 m This is an optimal solution if a standard DisplayPort cable length is not sufficient. Supports 4K resolution. Receiver with integrated splitter.
Supports resolutions up to 4096 x 2160 at 60 Hz
Connection between transmitter and receiver via S/FTP Cat6 RJ45 cable or better, up to 100 m
With fibre SFP modules fitted, link distances of up to 4 km are possible (e.g. SFP-MM-LC-10G up to 500 m; SFP-SM-LC-10G up to 4 km).
Receiver with 2-port USB hub
Metal housing
Connections: Transmitter: 2 x DisplayPort ports (1 x for PC, 1 x for console), 2 x USB 2.0 Type B ports, 1 x RJ45 port, 1 x 3.5 mm audio jack, 1 x RJ12 port (for RS232), 1 x SFP slot (unpopulated); receiver: 2 x DisplayPort ports (splitter function only), 4 x USB 2.0 Type A ports, 1 x RJ45 port, 1 x 3.5 mm audio jack, 1 x RJ12 port (for RS-232), 1 x SFP slot (unpopulated).
Includes: 2 x AC adapters (for transmitter and receiver), 1 x DisplayPort cable (plug-to-plug) 2 m (ref. VSCD18), 1 x USB Type A to Type B cable 2 m (ref. VSC24), 1 x 3.5 mm jack-to-jack audio cable 2 m.
Please note:
Extender set (ref. XD641P-DP-xx consisting of XD641T-DP and XD641R-DP).
A warranty extension of up to five years is available as an option.
