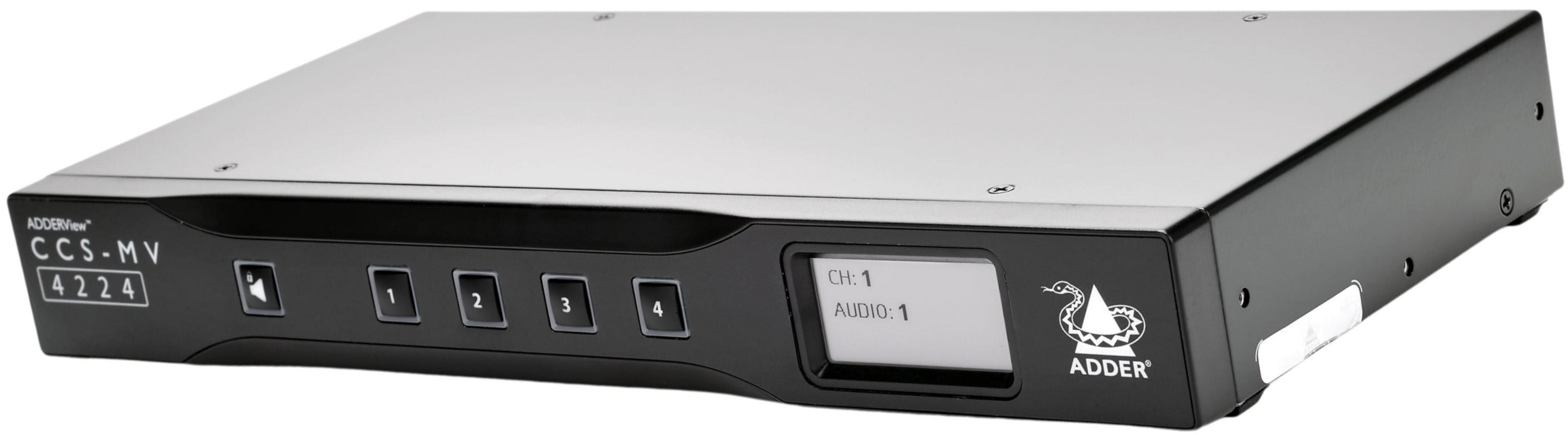

A KVM switch allows multiple PCs or servers to be controlled from a single monitor, keyboard and mouse. This product supports the connection of up to four computers via USB and DisplayPort/HDMI. The console is connected via USB and HDMI and supports two monitors. The KVM switch also supports analogue audio via a 3.5 mm jack and features a 4-port USB hub (4 x USB 3.0 Type-A port) for additional peripherals.
Combo video port for DisplayPort or HDMI
Switching can be performed automatically by moving the mouse to a different monitor/window.
Supports resolutions up to 3840 x 2160 at 30 Hz
1 U
Suitable for installation into 48.3 cm (19") racks (optional rack kit: RMK3)
Compatible with Windows, Linux, macOS
Metal housing
Colour: Black / grey
Connections: Connections: Input: 2 x HDMI ports, 2 x USB 2.0 Type-A ports (keyboard/mouse), 4 x USB 3.0 Type-A ports (for additional peripherals), 1 x 3.5 mm audio jack, 1 x RJ12 port (for flash upgrade); output: 4 x combo ports (HDMI/DisplayPort), 4 x USB 2.0 Type-B ports, 4 x USB 3.0 Type-B ports, 4 x 3.5 mm audio jacks
Includes: 1 x AC adapter
Please note:
A warranty extension of up to five years is available as an option.
