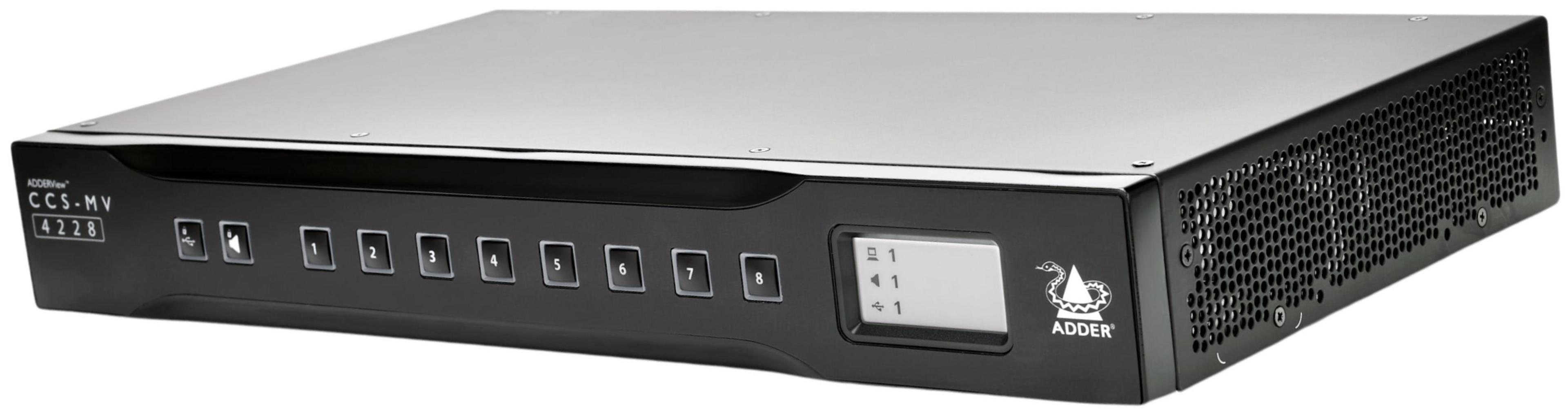

A KVM switch allows multiple PCs or servers to be controlled from a single monitor, keyboard and mouse. This product supports the connection of up to eight computers via USB and DisplayPort/HDMI. The console is connected via USB and HDMI and supports two monitors. The KVM switch also supports analogue audio via a 3.5 mm jack and features a 1-port USB hub (1 x USB 2.0 Type-A port) for additional peripherals.
DisplayPort and HDMI combo connector
Switching can be performed automatically by moving the mouse to a different monitor/window.
Supports resolutions up to 3840 x 2160 at 30 Hz
2 U
Suitable for installation into 48.3 cm (19") racks (optional rack kit: RMK14)
Compatible with Windows, Linux, macOS
Metal housing
Colour: Black / grey
Connections: Connections: Input: 2 x combo ports (HDMI/DisplayPort), 2 x USB 2.0 Type-A ports (keyboard/mouse), 1 x USB 2.0 Type-A port (for an additional peripheral), 1 x 3.5 mm audio jack, 1 x RJ12 port (for flash upgrade); output: 8 x combo ports (HDMI/DisplayPort), 8 x USB 2.0 Type-B ports, 8 x USB 3.0 Type-B ports, 8 x 3.5 mm audio jacks
Includes: 1 x AC adapter
Please note:
A warranty extension of up to five years is available as an option.
