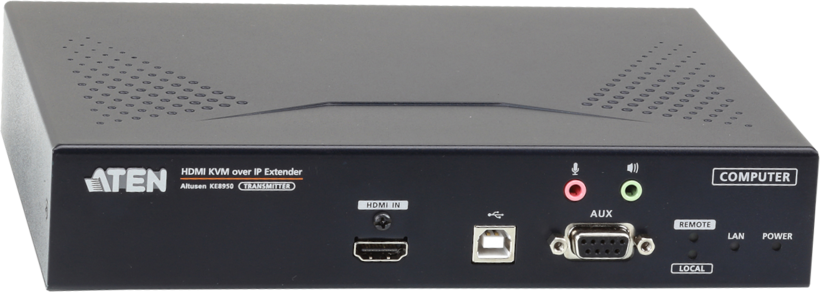

An HDMI KVM IP Extender consists of a transmitter and a receiver unit.
The package only includes the transmitter unit. The compatible receiver can be purchased separately (ref. no.: KE8950R-AX-G). This makes it possible to extend HDMI and USB signals by up to 100 m and thus represents an optimal solution option if a standard HDMI or USB cable length is not sufficient.
With IP, the transmitter and receiver are connected via the network.
Transmits HDMI, USB, audio and RS232 signals
A point-to-multipoint installation with a Gigabit switch as well as Matrix Management Software (ref.no. CCKM) are required for a video wall
One receiver is required per display
A local console can also be connected
Supports resolutions up to 3840 x 2160 at 60 Hz 4:2:0
With ESD and 1 KV surge protection
Metal casing
Ports: 2 x HDMI (A) female, 1 x USB-B female, 2 x USB-A female, 4 x 3.5 mm audio jack, 1 x DB9 male, 1 x DB9 female, 1 x RJ45 female, 1 x SFP module slot (empty), 1 x DC female;
Includes: AC adapter, 1 x Cable set (HDMI male -male, USB-A male - B male, 3.5 mm audio jack - 3.5 mm audio jack) 1.8 m, 1 x LockPro (to secure a cable to the extender)
