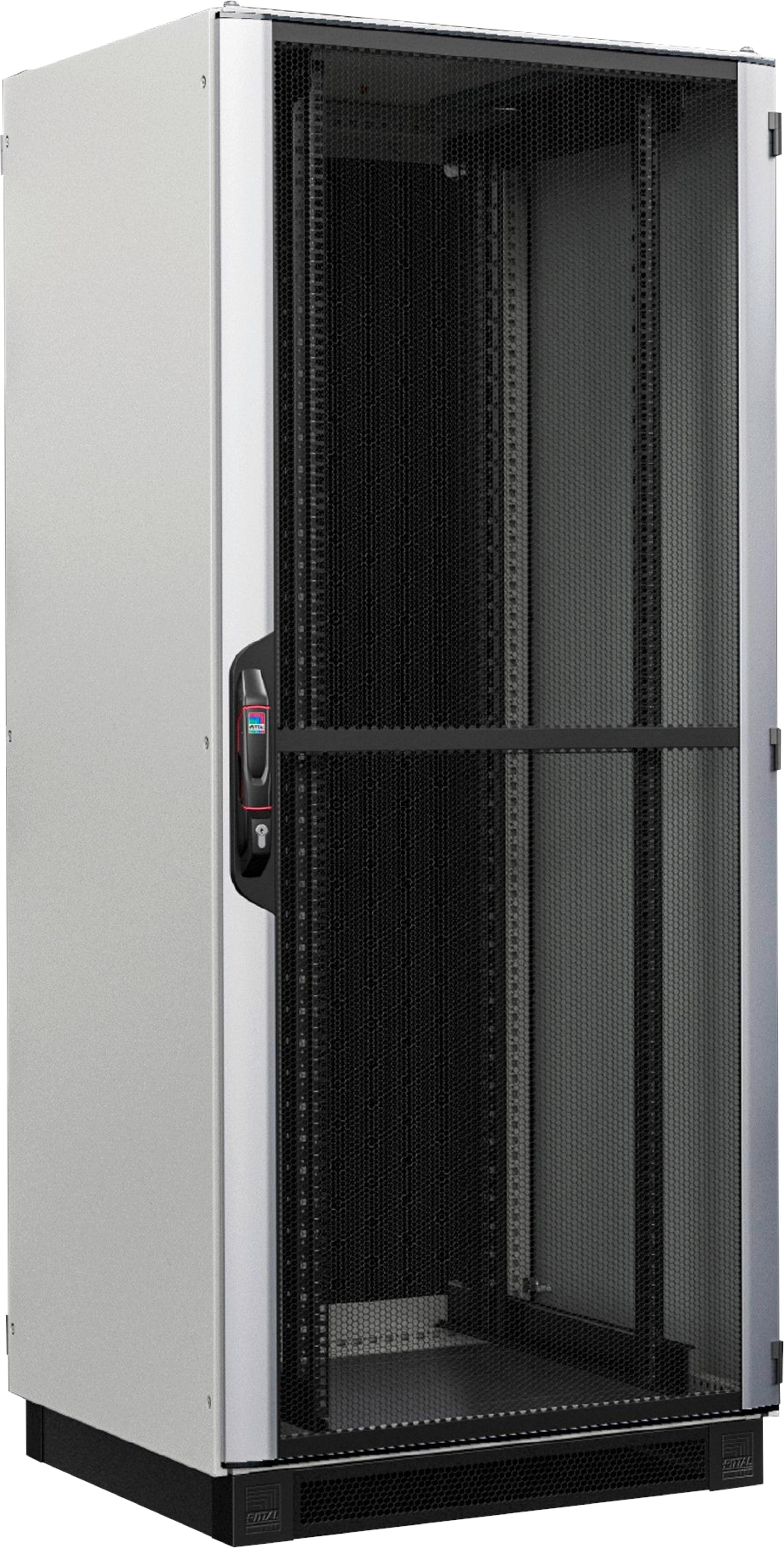

Pre-configured network/server rack with perforated/vented doors
Aluminium sheet steel door at the front, vented, 180° hinges
Sheet steel door at the rear, vented, divided vertically, 180° hinges
482.6 mm (19") mounting planes
Front and rear lock: Comfort handle for semi-cylinders and 3524 E standard lock
Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Colour (housing, back door, roof): RAL 7035 (light grey)
Colour (interior fittings, handle, hinges, vents): RAL 9005 (jet black)
Included:
2 x side panels, one-piece, for screw fastening
Base (100 mm), vented, fitted corner pieces
Base module mounted at front as infill panel
4 x M12 levelling foot
4 x combination rails for inner and outer mounting planes
10 x metal cable shunting rings 125 x 65 mm
25 x multi-tooth screws and 12 x fastener
Static load: up to 1200 kg
Weight: 162 kg
