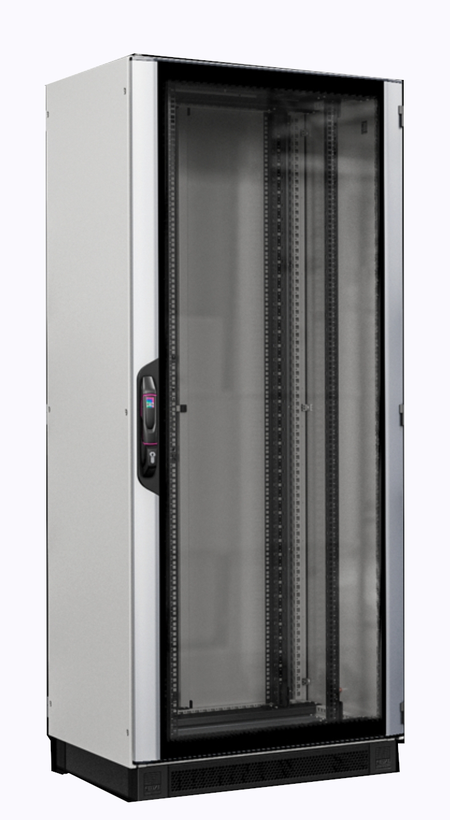

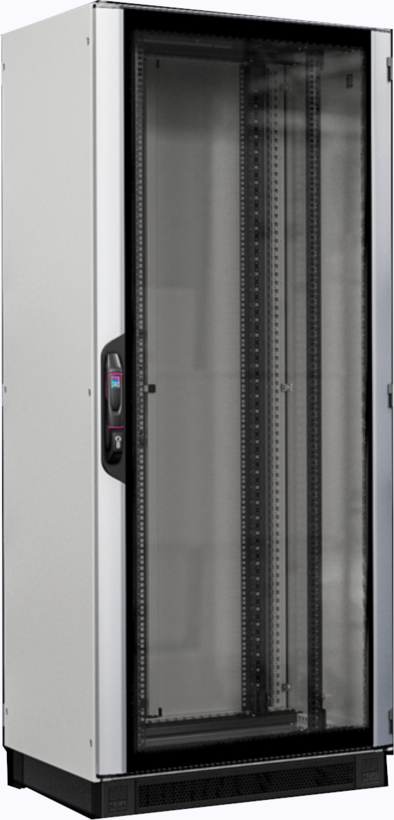

Pre-configured IT rack with aluminium and security glass viewing door, 3 mm, 180° hinges
Sheet steel door at the rear, solid, divided vertically, 180° hinges
482.6 mm (19") mounting planes
Front and rear lock: Comfort handle for semi-cylinders and 3524 E standard lock
Multi-piece top panel with transverse rear cable inlet, ready for fan mounting plate
25 x multi-tooth screws and 12 x fastener
Colour (housing, back door, roof): RAL 7035 (light grey)
Colour (interior fittings, handle, hinges): RAL 9005 (jet black)
Included:
2 x side panels, one-piece, lockable
Base (100 mm), vented, fitted corner pieces
Base module mounted at front as infill panel
4 x M12 levelling foot
4 x combination rails for inner and outer mounting planes
10 x metal cable shunting rings 125 x 65 mm
25 x multi-tooth screws and 12 x fastener
Static load: up to 800 kg
Weight: 163 kg
