| Product |
|---|
| Product type | Industrial PC |
| Manufacturer’s warranty | 3-year bring-in (see manufacturer's website for details) |
| Display |
|---|
| Display size | 54.6 cm (21.5") |
| Physical resolution | 1920 x 1080 FHD |
| Touchscreen | Multi-touch |
| Touch technology | Capacitive |
| Processor |
|---|
| Processor family | Intel Core i3 |
| Processor model | Intel Core i3-8145UE, 2.20 GHz |
| Motherboard chipset | CPU-integrated |
| Memory |
|---|
| RAM | 4 GB |
| RAM type | DDR4 |
| RAM (max.) | 64 GB |
| RAM modules (built in / max.) | 1 / 2 |
| Graphics |
|---|
| Graphics | Intel UHD Graphics 620 |
| Storage |
|---|
| SSD | 120 GB |
| SSD form factor | 1 x M.2 PCIe |
| Connectivity |
|---|
| Network card | 2 x Gigabit Ethernet |

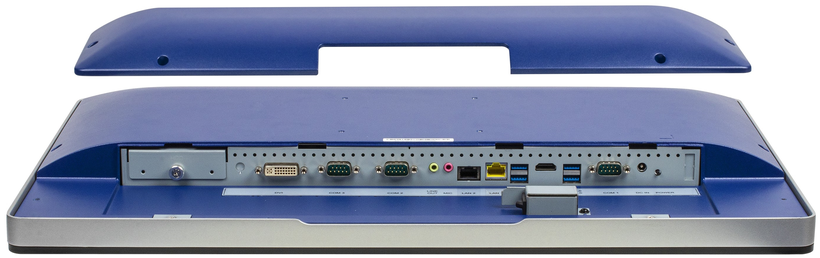

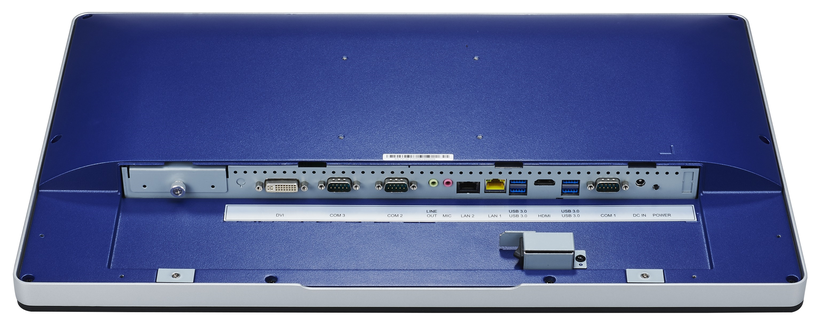

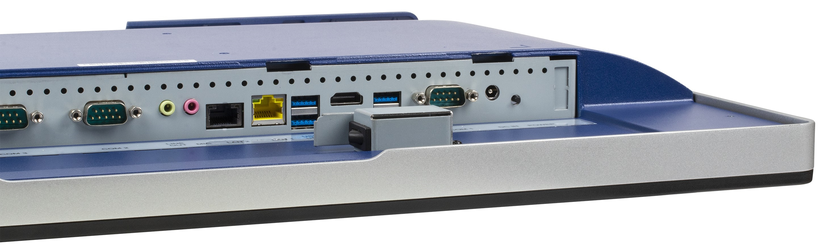

| Connectors | 1 x DVI-I, 1 x HDMI, 1 x headphones, 1 x Microphone, 2 x RJ45, 3 x serial, 4 x USB 3.2 Type-A |
| Wireless | Bluetooth, WLAN |
| Operating system |
|---|
| Operating system | - |
| Mounting |
|---|
| VESA mounting points | 100 x 100 mm |
| Security |
|---|
| Security | TPM 2.0 |
| Protection rating | IP65 |
| Special features |
|---|
| Special features | 24 x 7 continuous operation, Can be operated with gloves, Fanless, Passive cooling |
| Features |
|---|
| AC adapter | 90 W, External |
| Physical properties |
|---|
| Operating temperature | 0 °C to 40 °C |
| Chassis type | Display |
| Dimensions (W x H x D) | 543 x 334 x 50 mm |
| Version |
|---|
| Version | Europe |
