Eaton Electric

Eaton ePDU Managed G4 1ph 16A IEC320

Rack mounting: Vertical - Load capacity (max.): 3680 W - Direct connection to UPS: Yes - Input connection: IEC 320-C20, 230 V - Managed: Yes... more
(Review this product)

€1,071.99

Gross price: €1,286.39 incl. €214.40 VAT excl.

ECOLOGIC: €0.42 (excl. VAT)

Order by 14:30 for expected delivery on 25. April.

Only a few items left in stock.

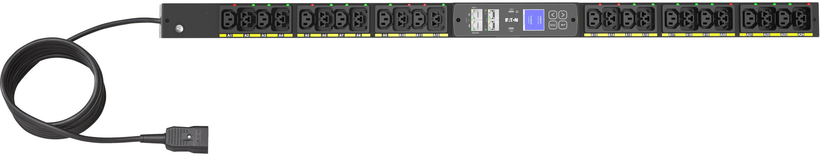

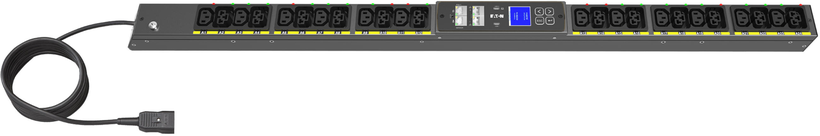

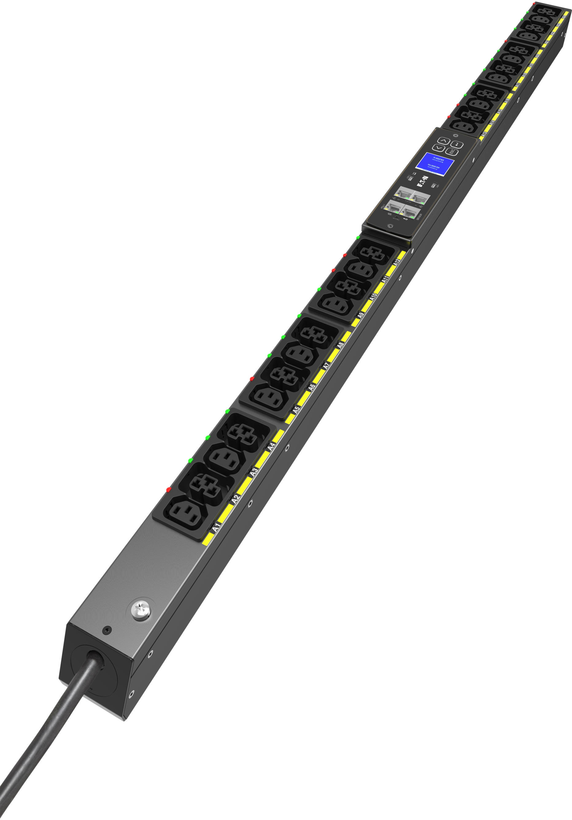

Eaton Managed G4 Rack PDU, Vertical power distribution unit, 16 A, 1-phase, 230 V, Individual outlet switching, incl. sequential/scheduled start-up Individual outlet monitoring/measuring of V, W, A and kWh, Rotating LCD, 2 x RJ45 port, Supports daisy chains up to 32 ePDUs (with a single 1 IP address), Optional temperature sensor, Sockets (lockable): 12 x IEC320-C13, 12 x IEC320-C39 (combined C13-C19 connectors)

Eaton ePDU Managed G4 1ph 16A IEC320

Product
Product typePower distribution unit
Manufacturer’s warranty3-year bring-in (see manufacturer's website for details)
General
Input phases1-phase 230 V
Direct connection to UPSYes

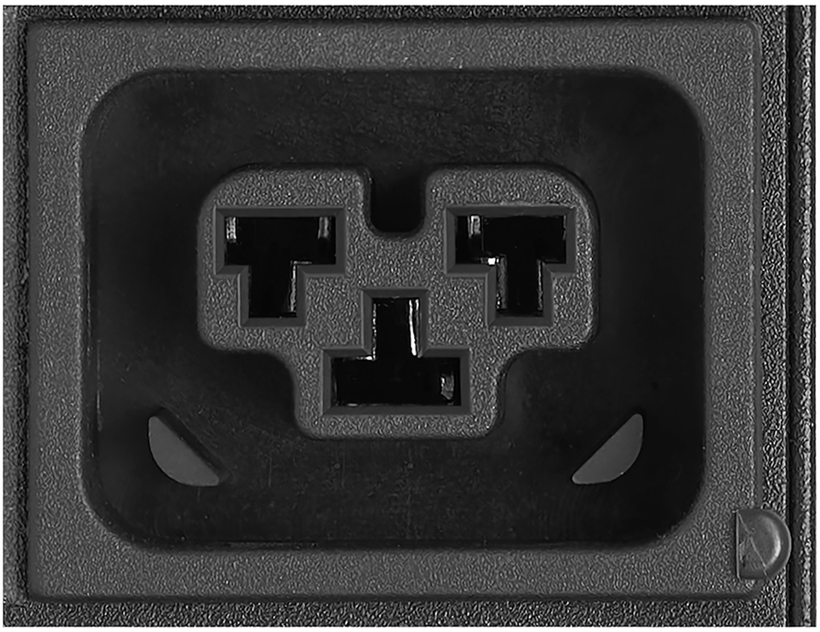

Input connectionIEC 320-C20, 230 V
Load capacity (max.)3680 W
ManagedYes
Individual outlet controlYes
Individual outlet meteringYes
Mounting
Rack mountingVertical
Physical properties
Dimensions (W x H x D)52 x 1000 x 53 mm
Weight3.7 kg
Country variant
Country variantEurope

Datasheets

Eaton ePDU Managed G4 1ph 16A IEC320 - Brochure

File type: PDF

File size: 2.99 MB

Eaton ePDU Managed G4 1ph 16A IEC320 - Data sheet 1

File type: PDF

File size: 43.19 KB
