Name: Eaton ePDU Managed G4 1ph 32A IEC309
Brand: Eaton Electric
SKU: 4754797
Price: 1298 EUR
Availability: InStock

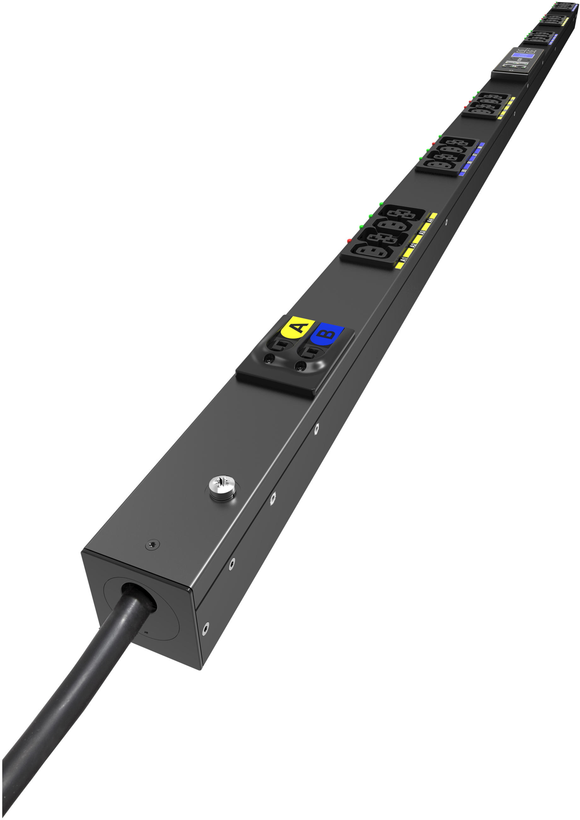

Eaton Managed G4 Rack PDU,
Vertical power distribution unit, 32 A, 1-phase, 230 V,
Individual outlet switching, incl. sequential/scheduled start-up
Individual outlet monitoring/measuring of V, W, A and kWh,
Rotating LCD, 2 x RJ45 port,
Supports daisy chains up to 32 ePDUs (with a single 1 IP address),
Optional temperature sensor,

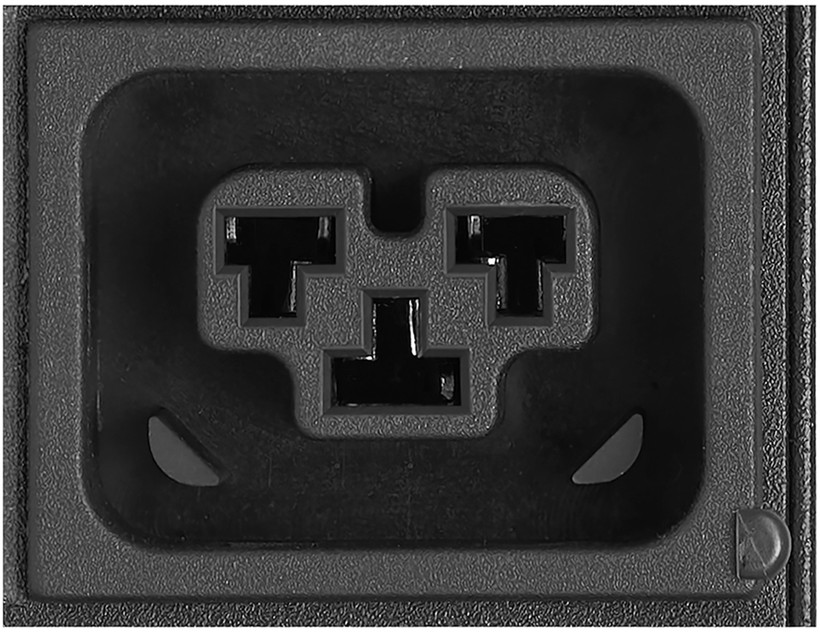

Sockets (lockable): 12 x IEC320-C13, 12 x IEC320-C39 (combined C13-C19 connectors)

Eaton ePDU Managed G4 1ph 32A IEC309

Product
Product type	Power distribution unit
Manufacturer’s warranty	3-year bring-in (see manufacturer's website for details)
General
Input phases	1-phase 230 V
Direct connection to UPS	No
Input connection	IEC 309, 230 V, 32 A (blue)
Load capacity (max.)	7360 W
Managed	Yes
Output	12 x C13, 12 x C13/C19
Individual outlet control	Yes
Individual outlet metering	Yes
Mounting
Rack mounting	Vertical
Physical properties
Dimensions (W x H x D)	52 x 1730 x 53 mm
Weight	4.5 kg
Version
Version	Europe
