Eaton Electric

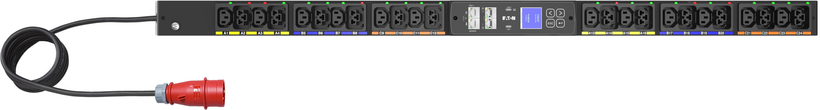

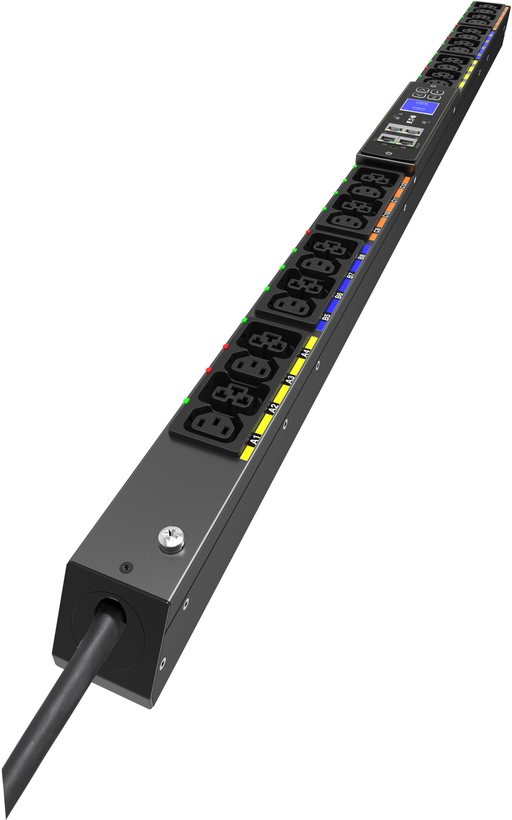

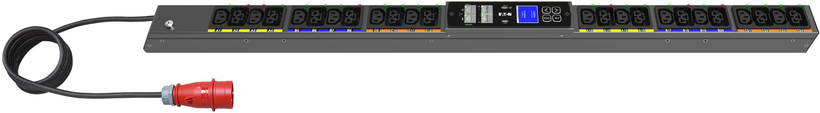

Eaton ePDU Managed G4 3ph 16A

Rack mounting: Vertical - Load capacity (max.): 11000 W - Direct connection to UPS: No - Input connection: IEC 309, 400 V, 16 A (red) - Managed: Yes... more
(Review this product)

€1,606.99

Gross price: €1,928.39 incl. €321.40 VAT excl.

ECOLOGIC: €0.42 (excl. VAT)

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

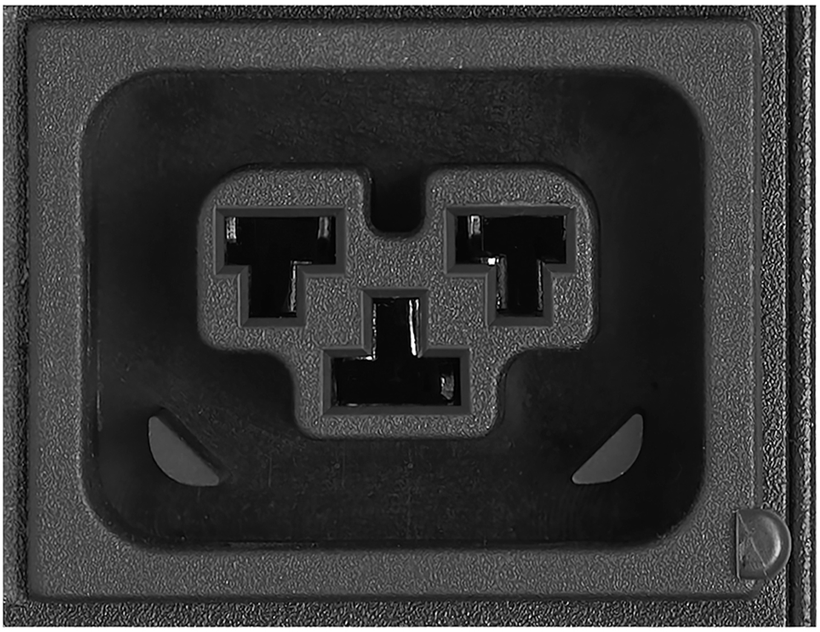

Eaton Managed G4 Rack PDU, Vertical power distribution unit, 16 A, 3-phase, 400 V, Individual outlet switching, incl. sequential/scheduled start-up Individual outlet monitoring/measuring of V, W, A and kWh, Rotating LCD, 2 x RJ45 port, Supports daisy chains up to 32 ePDUs (with a single 1 IP address), Optional temperature sensor, Sockets (lockable): 12 x IEC320-C13, 12 x IEC320-C39 (combined C13-C19 connectors)

Eaton ePDU Managed G4 3ph 16A

Product
Product typePower distribution unit
Manufacturer’s warranty3-year bring-in (see manufacturer's website for details)
General
Input phases3-phase 400 V
Direct connection to UPSNo
Input connectionIEC 309, 400 V, 16 A (red)
Load capacity (max.)11000 W
ManagedYes
Individual outlet controlYes
Individual outlet meteringYes
Mounting
Rack mountingVertical
Physical properties
Dimensions (W x H x D)52 x 1000 x 53 mm
Weight3.4 kg
Country variant
Country variantEurope

Datasheets

Eaton ePDU Managed G4 3ph 16A - Brochure

File type: PDF

File size: 2.99 MB

Eaton ePDU Managed G4 3ph 16A - Data sheet 1

File type: PDF

File size: 43.45 KB
