Dataflex

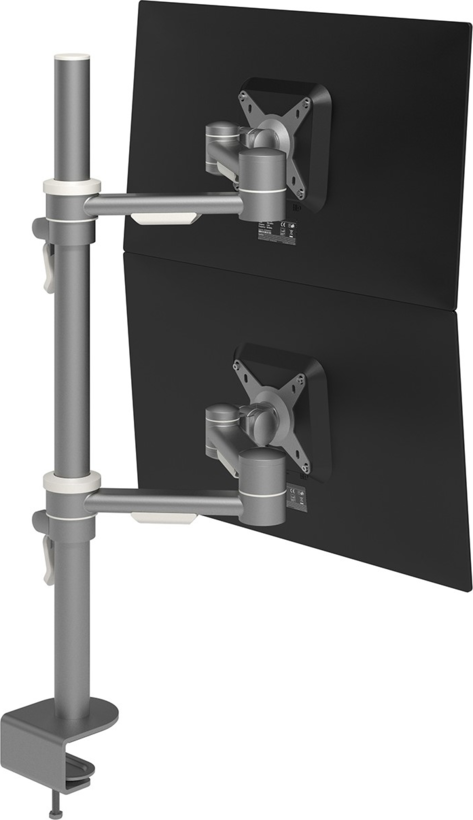

Dataflex Viewlite Dual Desk Monitor Arm
Mounting options: Desktop - Supported monitors: 2 - VESA mounting points: 75 x 75 mm, 100 x 100 mm - Load capacity (max.): 30.0 kg... more
The dataflex Viewmate monitor arm - desk 682 supports two monitors stacked on top of each other, which can be adjusted in height and depth independently. The clamp levers make height adjustment a breeze.
- Suitable for desks with a thickness from 5 to 40 mm (clamp) or 50 mm (bolt through)
- Comes with a desk clamp mount and bolt-through desk mount
- Independent depth adjustment
- Comes with a desk clamp mount and bolt-through desk mount
- Easy to adjust in height using a clamp lever
Dataflex Viewlite Dual Desk Monitor Arm
| Product | |
|---|---|
| Product type | Table mount |
| Manufacturer’s warranty | 15-year bring-in (see manufacturer's website for details) |
| General | |
| Application | Monitor |
| Adjustable height | Yes |
| Tilt | -90°, +90°, Yes |
| Swivel | 180°, Yes |
| Rotation | 360°, Yes |
| Mounting | |
| Mounting options | Desktop |
| Supported monitors | 2 |
| Recommended screen sizes | 79.0 cm (31.1"), 80.0 cm (31.5"), 81.3 cm (32.0"), 83.8 cm (33.0"), 86.4 cm (34.0"), 86.7 cm (34.1"), 88.9 cm (35.0"), 91.4 cm (36.0"), 94.0 cm (37.0"), 95.3 cm (37.5"), 96.5 cm (38.0"), 99.1 cm (39.0"), 100.3 cm (39.5"), 100.5 cm (39.6"), 100.8 cm (39.7"), 101.6 cm (40.0"), 104.1 cm (41.0"), 106.5 cm (41.9"), 106.7 cm (42.0"), 108.0 cm (42.5"), 109.3 cm (43.0"), 110.2 cm (43.4"), 114.3 cm (45.0"), 116.6 cm (45.9"), 116.8 cm (46.0"), 120.9 cm (47.6"), 121.9 cm (48.0"), 123.2 cm (48.5"), 124.2 cm (48.9"), 124.5 cm (49.0") |
| VESA mounting points | 75 x 75 mm, 100 x 100 mm |
| Load capacity (max.) | 30.0 kg |
| Design | |
| Colour | Silver |
| Special features | |
| Special features | Cable management |
| Includes | |
| Includes | Clamp |
| Version | |
| Version | Europe |
