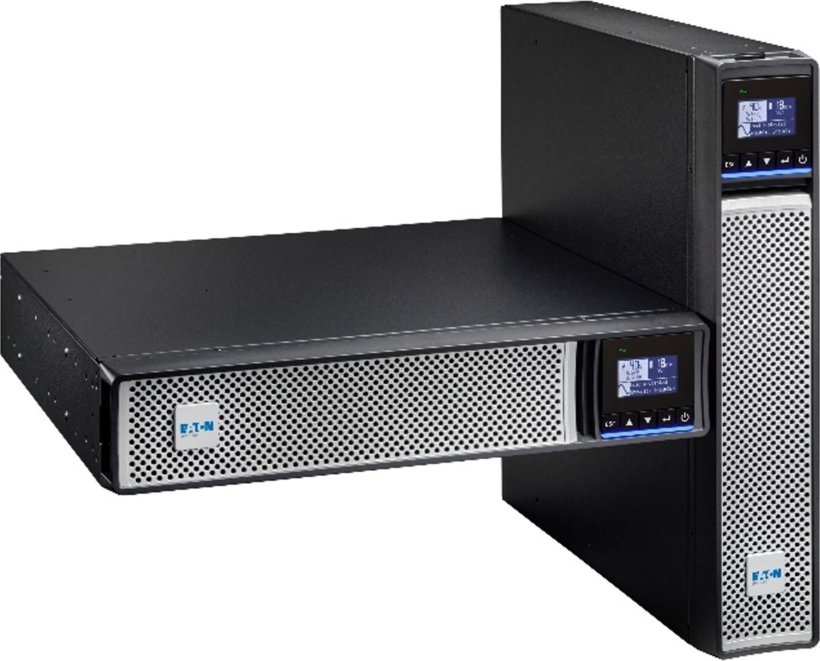

Name: Eaton 5PX 1500 RT2U Netpack G2 UPS 230V
Brand: Eaton Electric
SKU: 4584681-01
Price: 1328 EUR
Availability: InStock

UPS for 230 V input; tower-rack convertible
Incl. 2 U rack-mount kit
LCD control panel
Scalable with additional battery packs
USB and serial interfaces, relay contacts
Input: IEC320-C14 to BS mains plug (UK power cable)
Output: 8 x IEC320-C13, managed in 2 groups
Measure energy consumption for each output group

Runtime (1500 W load): approx. 5 min
Runtime (1000 W load): approx. 10 min
Runtime (750 W load): approx. 14 min

Eaton 5PX 1500 RT2U Netpack G2 UPS 230V

Product
Product type	UPS for servers / network
Performance
Apparent power (VA)	1500 VA
Effective power	1500 W
General
Technology	Line interactive
Battery type	VRLA (lead acid)
Battery life	3 - 5 year(s)
Duration	Renewable
Network
SNMP / management	Integrated
Physical properties
Chassis type	Tower / rack convertible
Rack units	2 U
Dimensions (W x H x D)	438 x 85 x 448 mm
Weight	19.6 kg
Version
Version	United Kingdom
