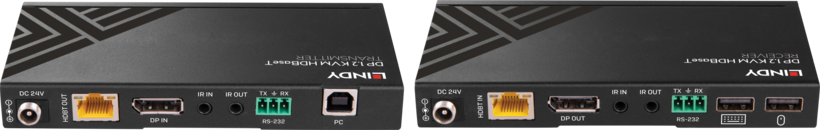

The DisplayPort extender consists of a transmitter and a receiver unit. It allows DisplayPort and USB signals to be extended up to 150 m. This is an optimal solution if a standard DisplayPort cable length is not sufficient.
Supports resolutions up to 3840 x 2160 at 60 Hz 4:4:4 8 bit
Transmitter and receiver are connected using a U/UTP Cat6 RJ45 cable
Supports data transfer rates of up to 21.6 Gb/s
Supports DisplayPort 1.2, USB 1.1
PoC feature for remote power supply to the receiver via the Cat6 cable from the transmitter
Metal casing
Connection: Transmitter: 1 x DisplayPort female, 1 x USB-B female, 1 x RJ45 female, 2 x 3.5 audio mm (IR), 1 x 3-pin (RS-232) female (for control), 1 x DC female; receiver: 1 x DisplayPort female, 2 x USB-A female, 1 x RJ45 female, 2 x 3.5 mm audio (IR), 1 x 3-pin (RS-232) female (for control), 1 x DC female
Includes: Multi-country AC adapter (EU, UK, US, AUS), 1 x USB-A male to B male cable 1.5 m, 2 x IR cable approx. 1.5 m, 4 x mount brackets, 8 x screws, 2 x 3-pin terminal block
