Lenovo

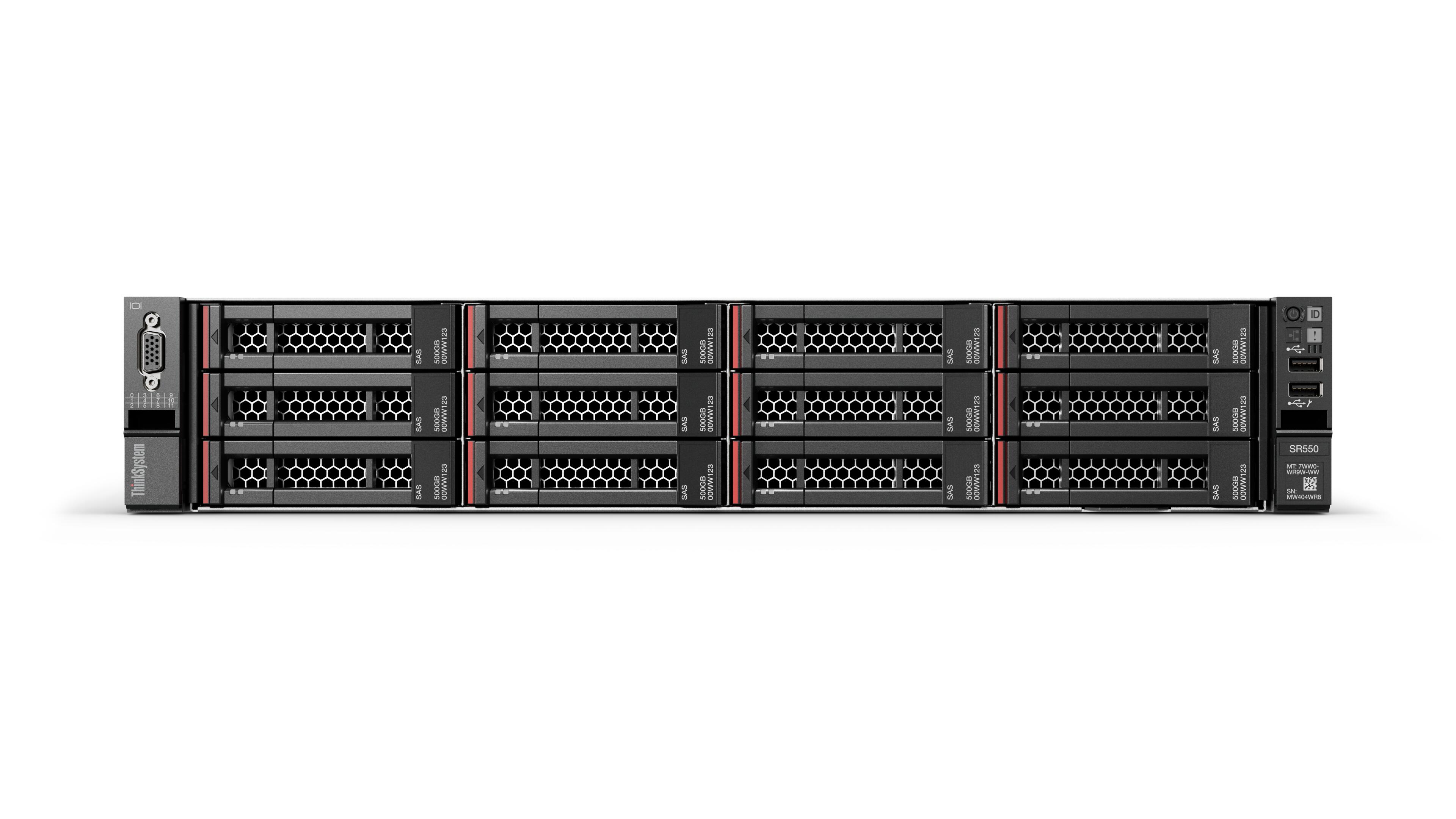

Lenovo ThinkSystem SR550 MLK Server
Chassis type: Rack - Rack units: 2 U - Server category: Dual processor - Processor family: Intel Xeon Silver - RAM: 16 GB... more
The product is no longer available.
Note:
A 2nd CPU is required to use the maximum number of DIMM slots.
Mixing different types of memory modules is not possible.
Please have our specialists check your custom configuration. We cannot accept claims for problems that result from the use of incompatible hardware.
Lenovo ThinkSystem SR550 MLK Server
| Product | |
|---|---|
| Product type | Server |
| Manufacturer’s warranty | 3-year limited on-site service (see manufacturer's website for details) |
| Physical properties | |
| Chassis type | Rack |
| Rack units | 2 U |
| Dimensions (W x H x D) | 445 x 87 x 720 mm |
| Processor | |
| Server category | Dual processor |
| Processor family | Intel Xeon Silver |
| Processor model | Intel Xeon Silver 4210, 2.2 GHz |
| CPU cores | 10 |
| Clock speed | 2.2 GHz |
| No. of processors | 1 |
| Storage | |
| Compatible storage media | 8.9 cm (3.5") hot-swap |
| HDD | Optional |
| SSD | Optional |
| HDDs (built-in / max.) | Without backplane |
| Memory | |
| RAM | 16 GB |
| RAM type | DDR4 ECC |
| RAM modules (built in / max.) | 1 / 12 |
| RAM (max.) | 768 GB |
| Drives | |
| Drives | - |
| Connectivity | |
| Network card | 2 x Ethernet 10/100/1000 Mb/s |
| Slots / bays (total) | 1 x PCIe x8 |
| Connectors | 1 x VGA |
| Operating system | |
| Operating system | - |
| Supported operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 11 for AMD64/EM64T, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.5 (ESXi) Update 3, VMware vSphere 6.7 (ESXi) Update 1, VMware vSphere 6.7 (ESXi) Update 2, VMware vSphere 6.7 (ESXi) Update 3 |
| Features | |
| Motherboard chipset | Intel C622 |
| RAID controller | Optional |
| Graphics | |
| Graphics chip | Matrox G200 |
| Performance | |
| PSUs (built in / max.) | 1 / 2 |
| Effective power | 750 W |
| Includes | |
| Includes | Power cable |
| Version | |
| Version | Europe |
