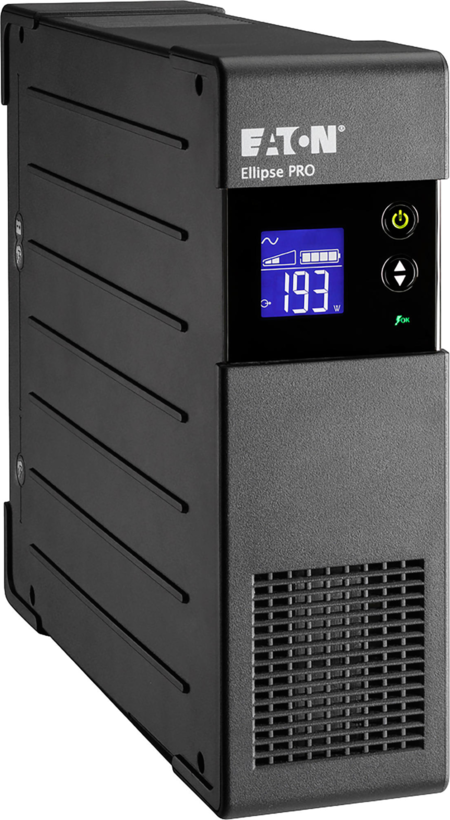

Eaton Ellipse PRO 650 UPS (DIN/Schuko)

Name: Eaton Ellipse PRO 650 UPS (DIN/Schuko)
Brand: Eaton Electric
SKU: 838995-05
Price: 177.99 EUR
Availability: InStock

Chassis type: Tower / rack convertible - Effective power: 400 W - Apparent power (VA): 650 VA - Max. runtime (100 % load): 1.0 min. - Weight: 6.6 kg... more

Gross price: €215.37 incl. €37.38 VAT excl. flat transaction fee/shipping costs

Recupel: €0.12 (excl. VAT)

Bebat: €0.05 (excl. VAT)

Expected delivery on 10. December. Larger orders may incur extended delivery times.

Only a few items left in stock.

UPS systems with line interactive technology protects power supplies to PCs and workstations,
Its ultra-flat design allows the Ellipse PRO to be easily installed in every office environment.
The LC display allows operations as well as visualisation of system status and metrics,
With Automatic Voltage Regulation (AVR) and EcoControl as well as high-performance surge protection for phones, internet and Ethernet.

Output: 3 x French socket (battery backup and surge protection), 1 x French socket (surge protection)

Eaton Ellipse PRO 650 UPS (DIN/Schuko)

Product
Product type	UPS for desktop PCs
Manufacturer’s warranty	3-year exchange service for electronics and batteries (see manufacturer's website for details)
Performance
Apparent power (VA)	650 VA
Effective power	400 W
Max. runtime (50% load)	9.0 min.
Max. runtime (70 % load)	5.0 min.
Max. runtime (100 % load)	1.0 min.
Physical properties
Chassis type	Tower / rack convertible
Dimensions (W x H x D)	82 x 260 x 285 mm
Weight	6.6 kg
Special features
Special features	Supports USB shutdown on Windows PCs
Version
Version	Europe
