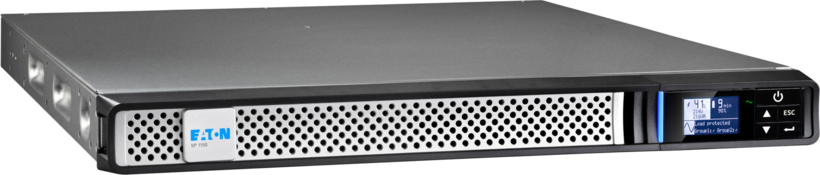

Name: Eaton 5P 1150iR G2 Rack NET UPS 230V
Brand: Eaton Electric
SKU: 4819072
Price: 1009.99 EUR
Availability: InStock

Eaton 5P Gen2 UPS rack for 230 V input,
Line-interactive technology for the protection of PCs, small servers and IT equipment,
Graphical LCD control panel,
USB and serial interface,
Eaton NETWORK-M3 Management Card integrated
Incl. rack-mount bracket

Input: IEC320-C14 to mains plug
Output: 6 x IEC320-C13, managed in 2 groups

Eaton 5P 1150iR G2 Rack NET UPS 230V

Product
Product type	UPS for servers / network
Manufacturer’s warranty	3-year exchange service for electronics, 2 years for batteries (see manufacturer's website for details)
Performance
Apparent power (VA)	1150 VA
Effective power	920 W
Max. runtime (50% load)	12.0 min.
Max. runtime (70 % load)	6.0 min.
Max. runtime (100 % load)	3.0 min.
General
Technology	Line interactive
Battery type	VRLA (lead acid)
Battery life	3 - 5 year(s)
Duration	Non-renewable
Network
SNMP / management	Integrated
Physical properties
Chassis type	Rack
Rack units	1 U
Dimensions (W x H x D)	438 x 44 x 509 mm
Weight	14.2 kg
Version
Version	Europe
