ads-tec

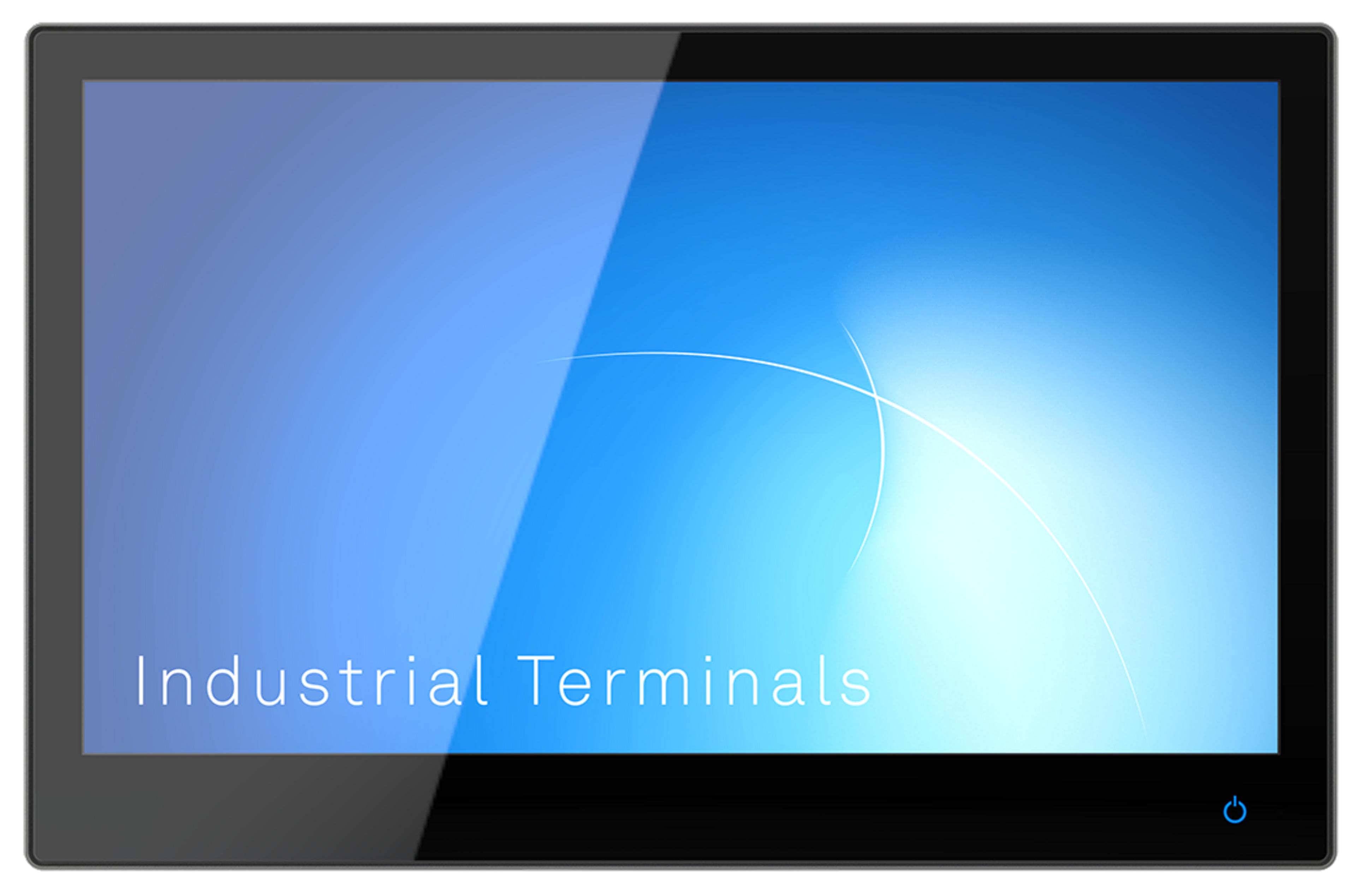

PC industria. ADS-TEC MES9016 i5 8/128GB
Modello di processore: Intel Core i5-8365UE, 1,6 GHz - Memoria di lavoro: 8 GB - SSD: 128 GB - Funzioni wireless: Bluetooth, WLAN - Grado di protezione: IP65 (fronte)... altro
Questo prodotto non è più disponibile.
The powerful MES9000 series industrial terminals are made of die-cast aluminium and are powder-coated. They are easy to integrate into machines or systems and very user-friendly thanks to the large multi-touch display, which can also be operated with gloves. Whether for manual collection of operational or order data, it reliably accompanies you through everyday business. It is suitable for a wide range of applications such as mounting on machines or systems for visualisation and operation.
Operating system: Windows 10 IoT 64-bit Enterprise
Highlights:
- Configurable
- Versatile connection options
- Paperless production for more efficiently designing production processes
- Designed for use in rugged environments
- Celeron or Intel Core i5 processors
Optional:
- 2 x 128 GB M.2 SSD, can be configured as RAID
- 2 x 256 GB M.2 SSD, can be configured as RAID
- Support arm adapter for mounting to back of housing
- Interfaces:
1 x Hilscher netJACK slot for fieldbus integration
1 x USB in the front
1 x HDBaseT interface (transmitter)
1 x Integrated antenna for Wi-Fi/Bluetooth module
1 x Integrated antenna in the front for RFID module
Comes with a warranty of 12 months.
Please note:
Please get in touch with your Bechtle account manager if you are interested in a custom configuration.
PC industria. ADS-TEC MES9016 i5 8/128GB
| Prodotto | |
|---|---|
| Tipo di prodotto | PC industriale |
| Display | |
| Dimensioni del display | 39,6 cm (15,6") |
| Risoluzione fisica | 1.920 x 1.080 FHD |
| Touchscreen | multi-touch |
| Tecnologia touch | capacitivo |
| Processore | |
| Famiglia di processori | Intel Core i5 |
| Modello di processore | Intel Core i5-8365UE, 1,6 GHz |
| Memoria di lavoro | |
| Memoria di lavoro | 8 GB |
| Tipo di memoria di lavoro | DDR4 |
| Memoria di lavoro max. | 32 GB |
| Banchi di memoria occupati/disponibili | 1 / 1 |
| Grafica | |
| Scheda grafica | Intel UHD Graphics 620 |
| Supporti di memoria | |
| SSD | 128 GB |
| Formato SSD | 1x M.2 PCIe |
| Connettività | |
| Scheda di rete | 3x Ethernet 10/100/1000 Mbit/s |
| Porte | 1x DisplayPort, 3x RJ-45, 4x USB 3.1 Type A |
| Funzioni wireless | Bluetooth, WLAN |
| Sistema operativo | |
| Sistema operativo | Windows 10 IoT 64 bit Enterprise |
| Drive | |
| Drive | senza |
| Montaggio | |
| Standard di montaggio VESA | 100 x 100 mm |
| Sicurezza | |
| Grado di protezione | IP65 (fronte) |
| Particolarità | |
| Particolarità | utilizzabile con guanti, senza ventola, ventilazione passiva |
| Dotazione | |
| Alimentatore | 150 watt |
| Caratteristiche fisiche | |
| Temperatura di esercizio | 0° C - 40° C |
| Tipo di cabinet | display |
| Dimensioni (La x A x P) | 400 x 270 x 80 mm |
| Versione | |
| Versione | Europa |
