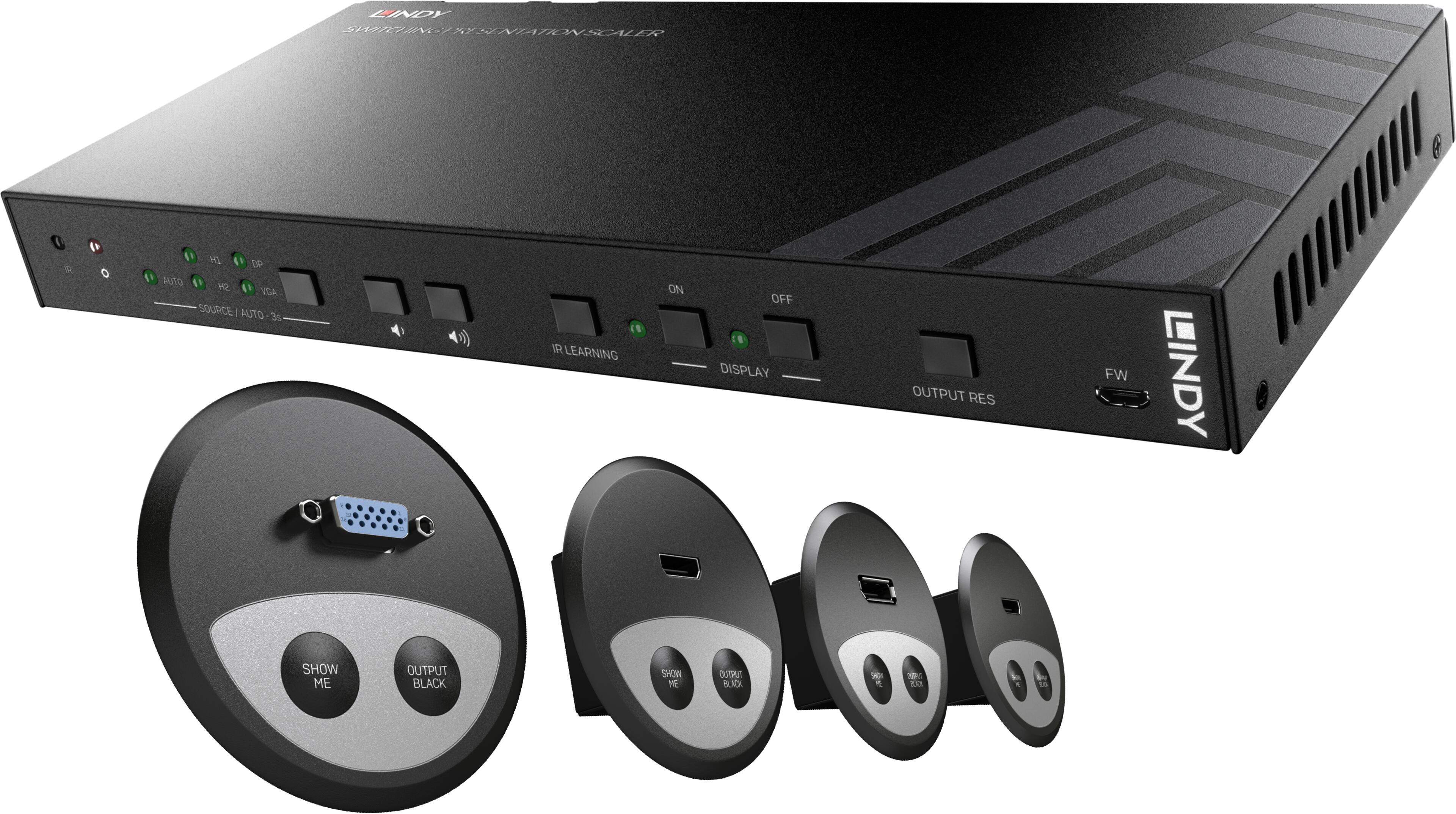

Connects DisplayPort, VGA (with audio) and 2 HDMI sources to 1 HDMI end device
Easy key-stroke and auto-switching
Supports HDMI resolutions up to 3840 x 2160 pixels at 60 Hz 4:2:0 8 bit, VGA resolutions up to 1920 x 1200 pixels at 60 Hz
HDCP support: 2.2
Selector and desk module must be connected with a 3-pin cable
Desk module dimensions: External diameter: 76 mm, diameter of hole (desk): 57 mm, Depth: 28.5 mm
Ports: Selector input: 1x DisplayPort female, 1x VGA (HD15) female, 2x HDMI(A) female; 1x audio jack 3.5 mm, Output: 1x HDMI(A) female, 1x IR female, 6x 3-pin female; Desk module: HDMI female - female, 3-pin female, DisplayPort female - female, 3-pin female, VGA female - female, 3-pin female,
Includes: Power adapter (EU, UK, US & AUS), 2x mounting bracket, 4x screw, 4x rubber feet, 10 x 3-pin Phoenix connectors, 2x HDMI table grommets, 1x DisplayPort table grommet, 1x VGA table grommet, 4x mounting kit for table grommets
