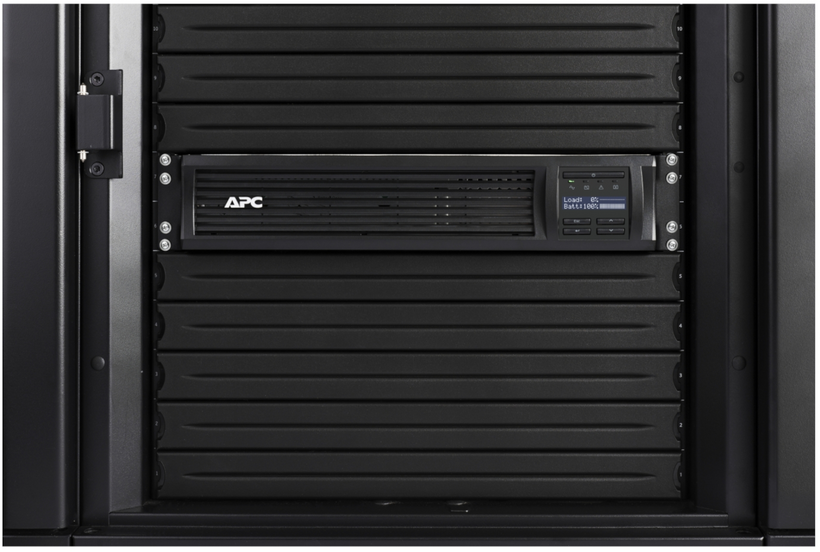

Example installation

Tap to zoom in

APC by Schneider Electric

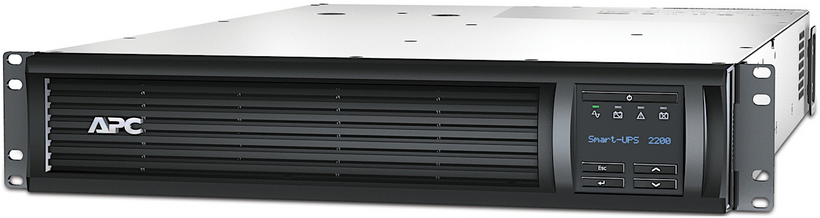

APC Smart-UPS 2200VA LCD C RM 2U

Chassis type: Rack - Effective power: 1980 W - Apparent power (VA): 2200 VA - Technology: Line interactive - Rack units: 2 U... more

€ 1.684,00

Gross price: € 2.020,80 incl. € 336,80 VAT excl.

Expected delivery on 28. April.

33 items in stock.

UPS rack format system for 230 V incl. rack-mount kit 2 U LCD control panel USB interface, serial via RJ45 port Management card slot Input: IEC320-C20 to mains plug Output: 8 x IEC320-C13, 1 x IEC320-C19 (managed in 2 groups) APC SmartConnect status monitoring via WebPortal Access from any device connected to the internet (also mobile) with free remote monitoring from the cloud Automatic firmware updates Special software, SNMP traps or programming are not necessary Proactive alarms and lifecycle recommendations

APC Smart-UPS 2200VA LCD C RM 2U

Product
Product typeUPS for servers / network
Manufacturer’s warranty3-year exchange service for electronics, 2 years for batteries (see manufacturer's website for details)
Performance
Apparent power (VA)2200 VA
Effective power1980 W
Max. runtime (50% load)16.0 min.
Max. runtime (70 % load)9.0 min.
Max. runtime (100 % load)5.0 min.
General
TechnologyLine interactive
Battery typeVRLA (lead acid)
Battery life3 - 5 year(s)
Network
SNMP / managementOptional
Physical properties
Chassis typeRack
Rack units2 U
Dimensions (W x H x D)480 x 86 x 683 mm
Weight43.0 kg
Country variant
Country variantEurope

Datasheets

APC Smart-UPS 2200VA LCD C RM 2U - Brochure

File type: PDF

File size: 1.33 MB

APC Smart-UPS 2200VA LCD C RM 2U - Data sheet 1

File type: PDF

File size: 100.67 KB
