APC by Schneider Electric

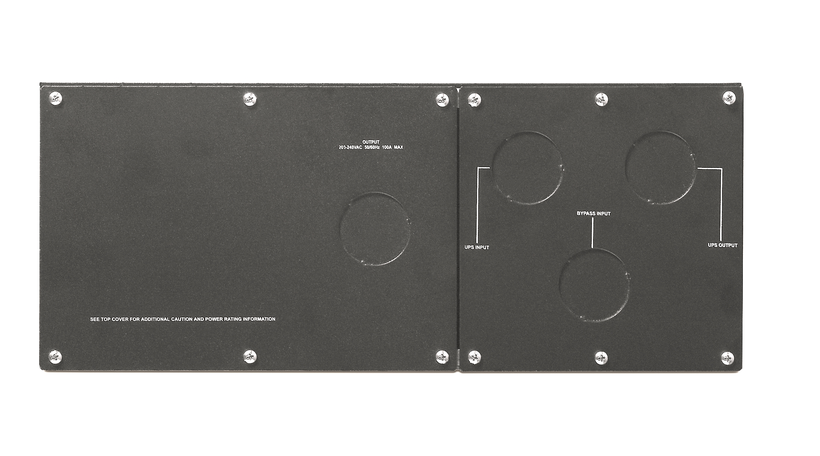

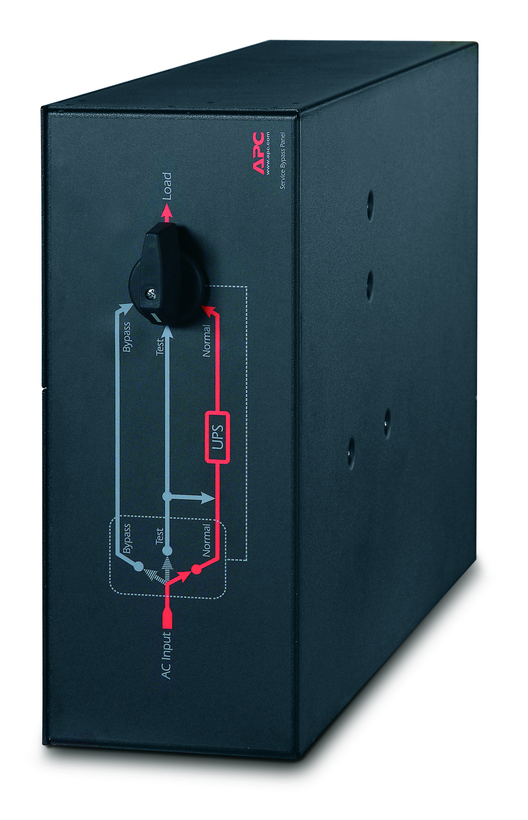

APC Service Bypass Panel 100A 3/1ph

... more
5 of 5(1 ratings)

€1,584.00

Gross price: €1,916.64 incl. €332.64 VAT excl.

Expected delivery on 26. March. Larger orders may incur extended delivery times.

Only a few items left in stock.

External service bypass to isolate the UPS system For 3/1-phase UPS systems up to 16 kVA Input: hardwire 3 wire (2PH+G, 1PH+N+G) 3-wire (1PH+N+G), 5-wire (3PH+N+G) 230 V,480 V Output: hardwire 3 wire (2PH+G, H N+G), 4 wire (2PH+N+G) 230 V Incl. rackmount bracket . Dimensions (H×W×D): 178×432×660 mm Net weight: 21.4 kg

APC Service Bypass Panel 100A 3/1ph

Product
Product typeService bypass panel
Manufacturer’s warranty2-year bring-in (see manufacturer's website for details)
Country variant
Country variantEurope

Datasheets

APC Service Bypass Panel 100A 3/1ph - Product overview

File type: PDF

File size: 538.69 KB

APC Service Bypass Panel 100A 3/1ph - Data sheet 1

File type: PDF

File size: 108.52 KB
