Dell

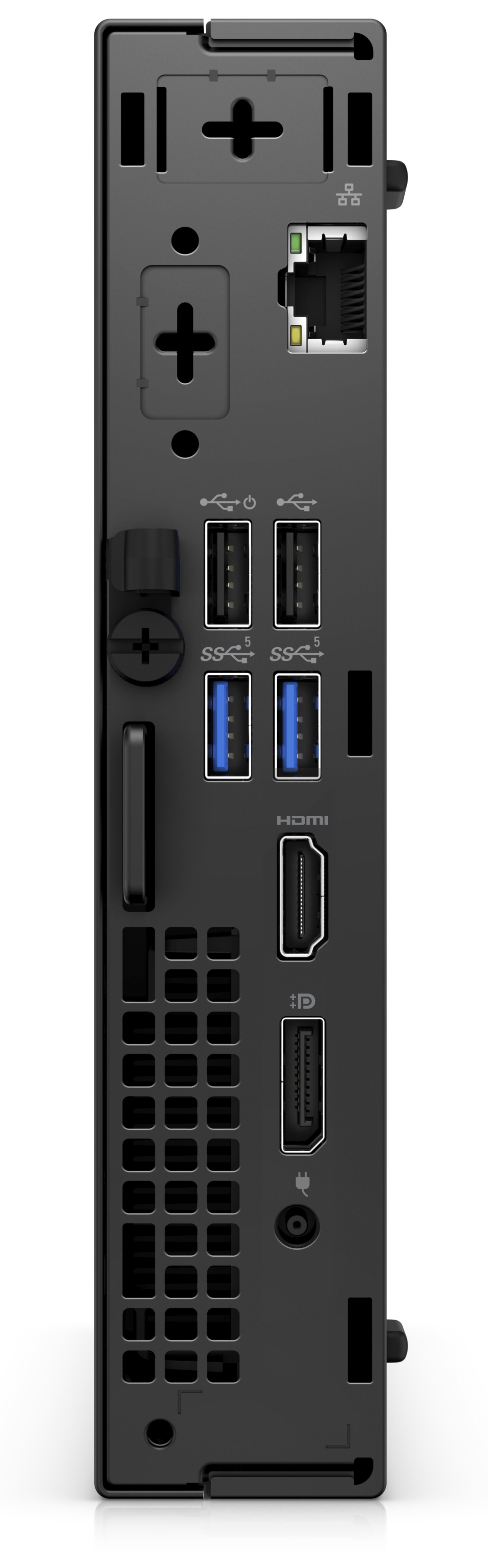

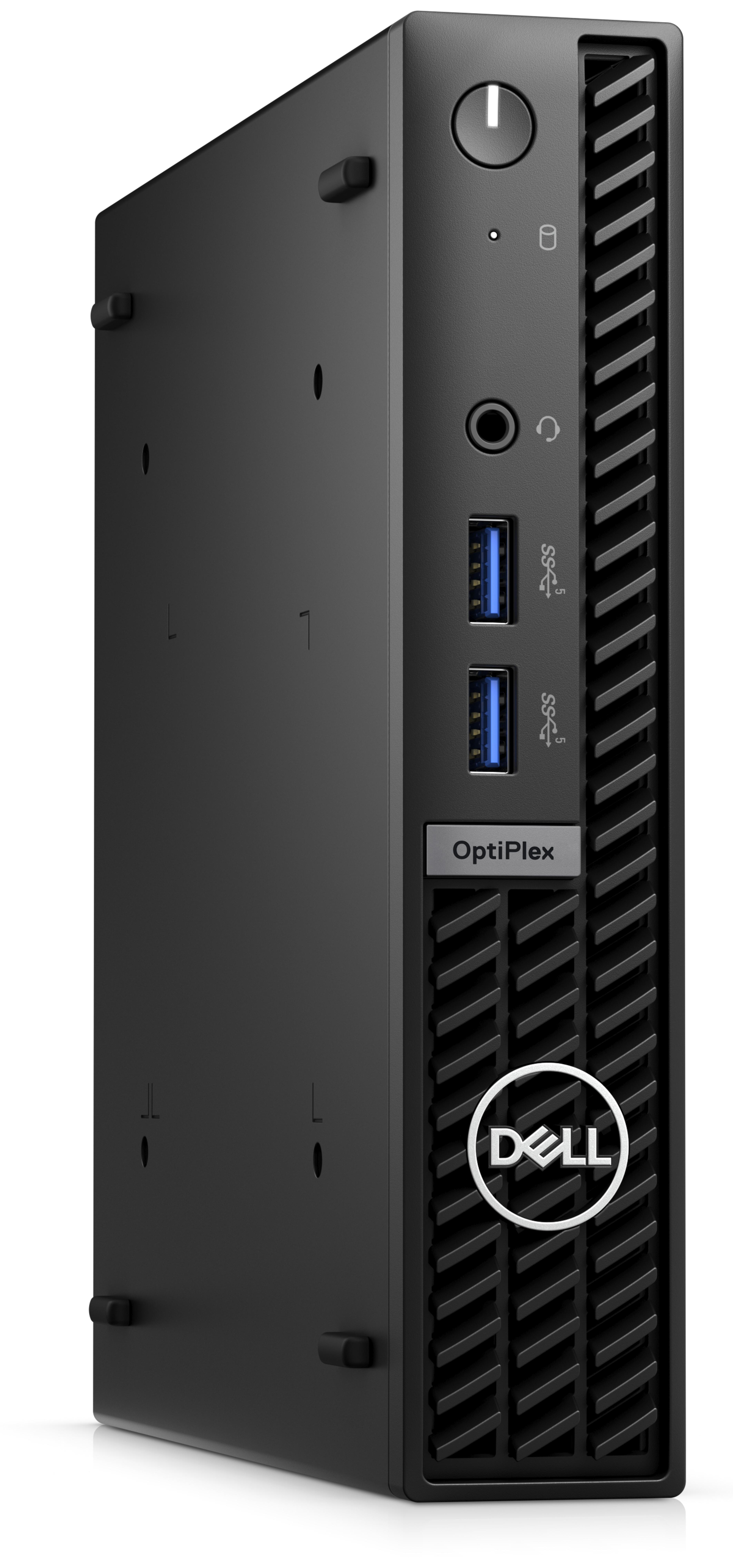

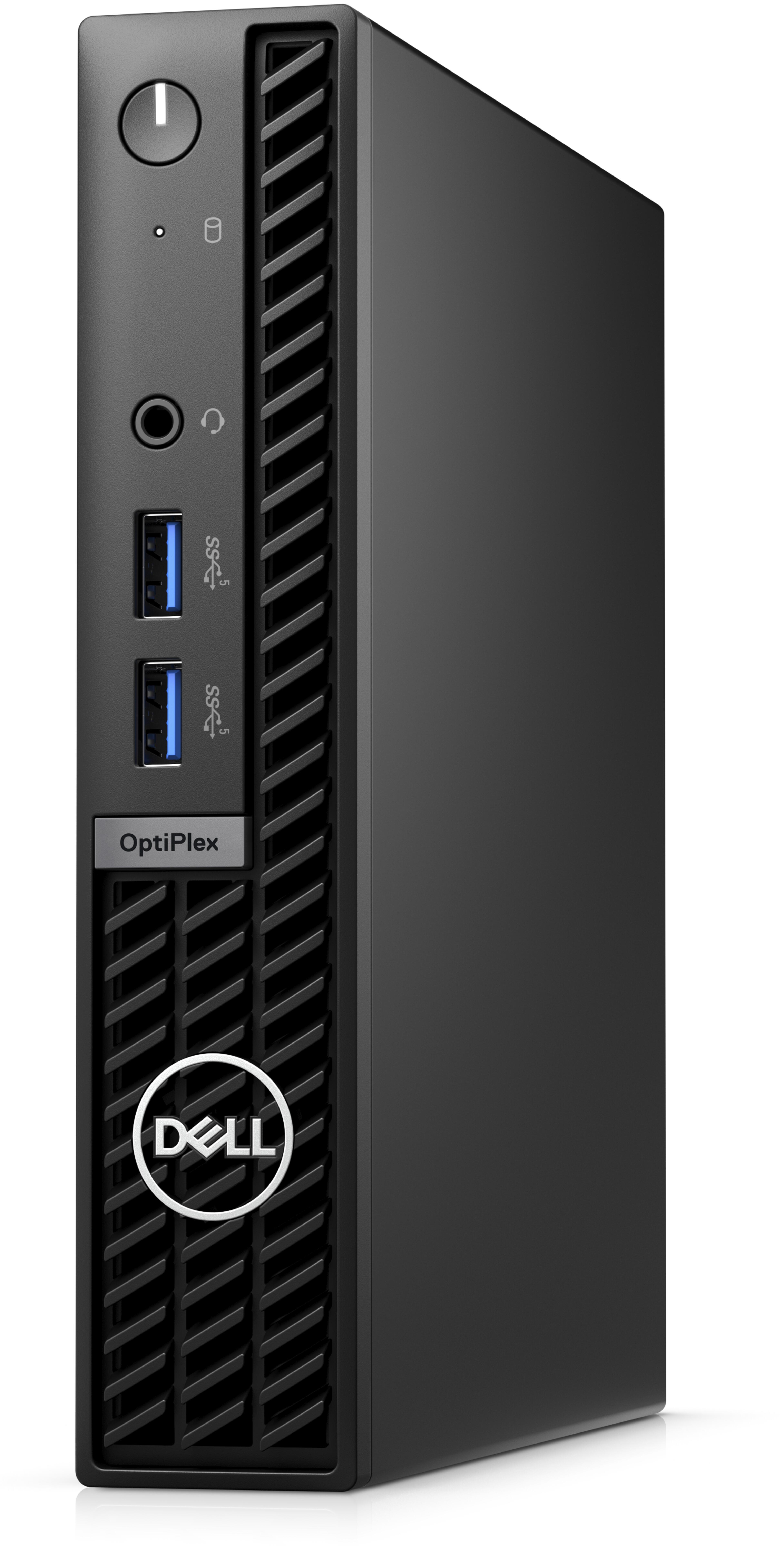

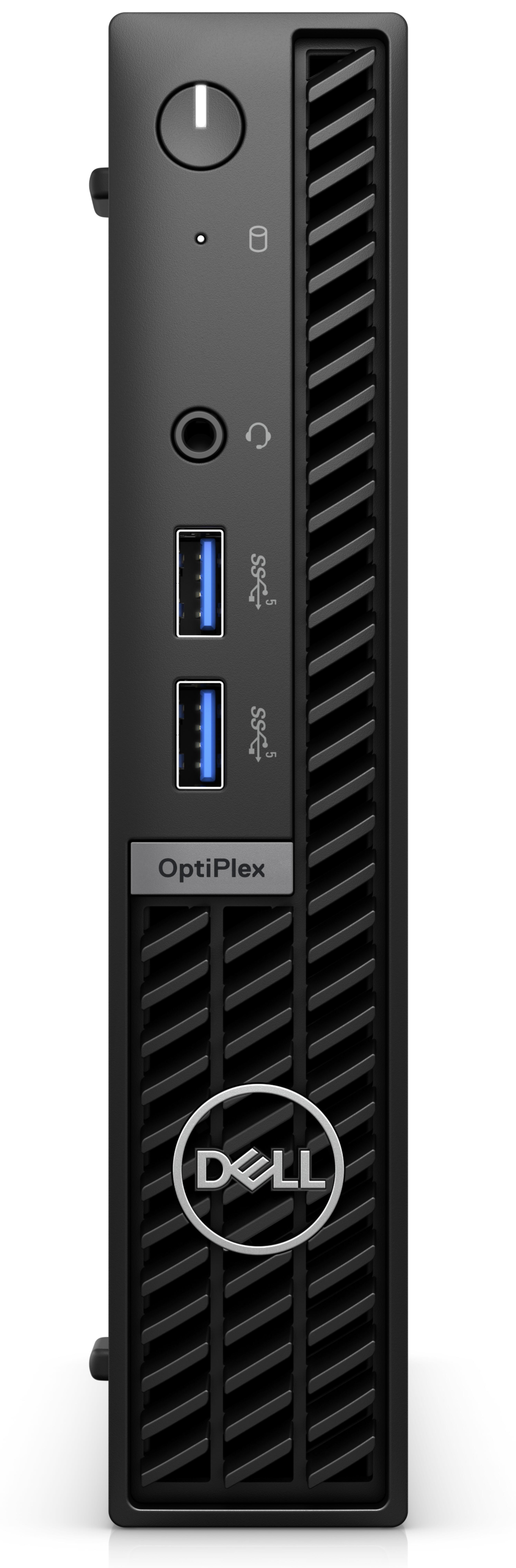

Dell OptiPlex Micro i5 16/512 GB
Chassis type: Micro housing - Processor model: Intel Core i5-14500 T, 1.7 GHz - RAM: 16 GB - Graphics: Intel UHD Graphics 770 - SSD: 512 GB... more
The product is no longer available.
OptiPlex Micro Form Factor 7020 [4 years]
Intel Core i5 14500T vPro (24 MB Cache, 14 Cores,
20 threads, up to 4.8 GHz, 35 W)
16 GB DDR5 RAM, 1 x 16 GB, 5600, non ECC
SoDIMM
M.2-2230 PCIe NVMe SSD, 512 GB, class 35
M2 x 3.5 screw for SSD/DDPE
Internal speaker, MFF 7020
Intel AX211 Wi-Fi 6E 2x2 and Bluetooth
Internal antenna
System network cable (European)
Delivery documents - EN, FR, DE, IT, NL
Quick start guide, OptiPlex Micro
Technical data sheet for EU battery regulations.
Dell Pro Wireless Keyboard and Mouse - KM5221W - German
(QWERTZ) - black
Mouse included with keyboard
System monitoring option not selected in this configuration
Wireless driver, Intel AX211
Optional DisplayPort
90 W AC adapter
OptiPlex Micro with 35 W CPU
No out-of-band system management
Dell order
EPEAT 2018-registered (Gold)
ENERGY STAR certified
Trusted Platform Module (separate, TPM-ready)
EMEA OptiPlex - Packaging and labels
OptiPlex Micro packaging and labels
Custom configuration (BTO)
Regulatory label for OptiPlex Micro, 90 W - EMEA
Intel Core i5 processor label
Desktop PC BTO standard shipping
IRST driver, MFF 7020
Partner Operations Support (per packet), A
BIOS: NIC Set To On w/ PXE
BIOS Wake-On-Lan Set To Enabled-Same As Remote wake up
BIOS Setting Mandatory Enablement SKU
SI, MOD, INFO, LANG, GERMAN, DE
Additional Dell software
Windows 11 Pro, English, Dutch, French
German, Italian
Windows 11 Version 23H2
Activate Microsoft 365 for a 30-day trial
Windows AutoPilot
CUSTOMER-SPECIFIC SHIPPING, SCHEDULED, CLIENT -
W03
CS FEE READY IMAGE
Basic On-site Service 12 Months
NBD ProSupport and on-site service
Extension, 36 months
NBD ProSupport and on-site service
Initial package, 12 months
Dell OptiPlex Micro i5 16/512 GB
| Product | |
|---|---|
| Product type | Mini PC |
| Processor | |
| Processor family | Intel Core i5 |
| Processor model | Intel Core i5-14500 T, 1.7 GHz |
| Motherboard chipset | Intel Q670 |
| Memory | |
| RAM | 16 GB |
| RAM type | DDR5 |
| Clock speed | 5600 MHz |
| RAM modules (built in / max.) | 1 / 2 |
| RAM (max.) | 64 GB |
| Graphics | |
| Graphics type | Onboard / - |
| Graphics | Intel UHD Graphics 770 |
| Storage | |
| SSD | 512 GB |
| SSD form factor | 1 x M.2 PCIe |
| Connectivity | |
| Slots / bays (available) | 1 x 6.4 cm (2.5") bay |
| Slots / bays (total) | 1 x 6.4 cm (2.5") bay, 1 x M.2 2230 Wi-Fi, 1 x M.2 2280 PCIe |
| Network card | Ethernet 10/100/1000 Mb/s |
| Connectors | 1 x HDMI, 1 x DisplayPort, 1 x RJ45, 1 x 3.5 mm audio female, 2 x USB 2.0 Type-A, 4 x USB 3.2 Type-A |
| Wireless | Bluetooth, WLAN |
| Operating system | |
| Operating system | Windows 11 Pro 64-bit |
| Drives | |
| Drives | - |
| Security | |
| Security | TPM 2.0 |
| Features | |
| AC adapter | 90 W, External |
| Includes | |
| Includes | Dell KM5221W Keyboard and Mouse Set |
| Physical properties | |
| Chassis type | Micro housing |
| Dimensions (W x H x D) | 36 x 182 x 178 mm |
| Version | |
| Version | German |
